AC/DC Surface Solar Pump

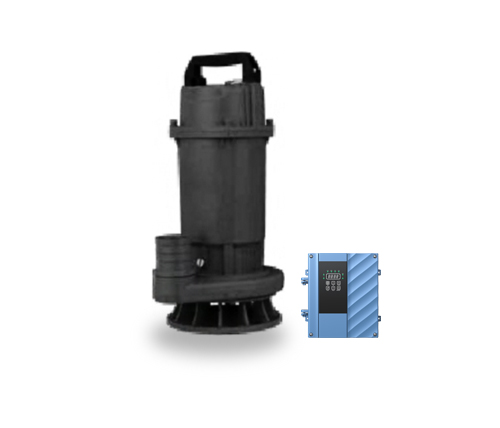

ADQD Series AC/DC Brushless Easy Installation Anti-corrision Solar Submersible Pump for Irrigation

AC/DC Brushless
Easy Installation
Anti-corrision
pump for irrigation
Solar Submersible Pump

Get A Quote

Download

Get password

PREV：ADZB Series AC/DC Brushless Thermostability Powerful Solar Surface Pump NEXT：ADWQD Series AC/DC Permanent Magnet Solar Dewatering Pump with Auto-Switching Controller

Description
Components

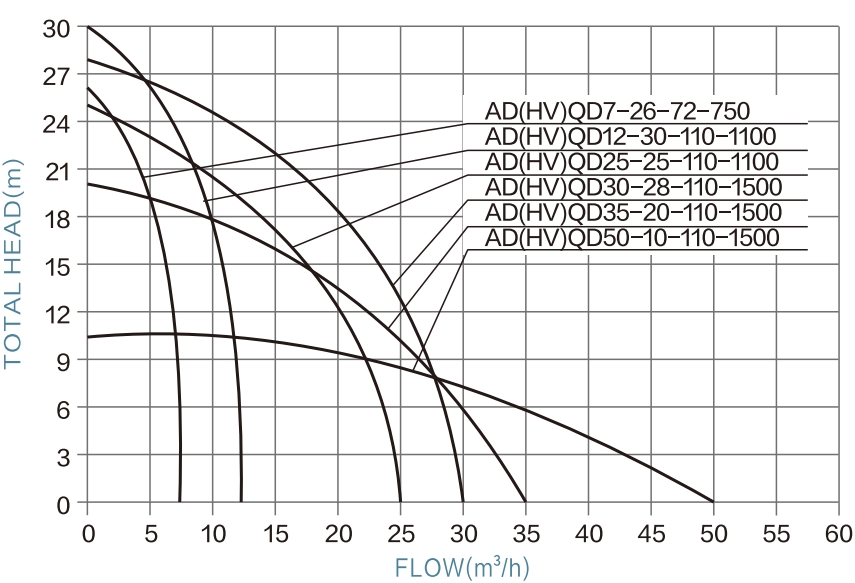

Curves
Performance Data

Description :
With its advanced technology,ADQD series AC/DC brushless portable anti-corrision solar submersible pump for irrigation is capable of delivering high-quality water without the need for electricity or fuel. It is made of high-quality stainless steel casing, which makes it durable and resistant to corrosion.

Key Features :
1、304 SS shell
2、Easy Installation
3、Anti-corrision operation
4、Ecofriendly :it is not only cost-effective but also environmentally friendly.
5、1 year warranty

Free Spare Parts :

Technical Data：

ITEM	（AC）Voltage	Optimum input voltage(DC)	Power	Max. Flow	Max.Head	Outlet	Cable	Solar panel
ITEM	（AC）Voltage	Optimum input voltage(DC)	Power	Max. Flow	Max.Head	Outlet	Cable	Open circuit voltage(VOC)	Power
ADQD7-26-72-750	85V-280V	100V-350V	750W	7m³/h	26m	1"	5m	＜430V	≥1.3*PUMP POWER
ADQD12-30-110-1100	85V-280V	110V-350V	1100W	12m³/h	30m	1.5"	5m	＜430V	≥1.3*PUMP POWER
ADQD25-25-110-1100	85V-280V	110V-350V	1100W	25m³/h	25m	2"	5m	＜430V	≥1.3*PUMP POWER
ADQD30-28-110-1500	85V-280V	110V-350V	1500W	30m³/h	28m	2"	5m	＜430V	≥1.3*PUMP POWER
ADQD35-20-110-1500	85V-280V	110V-350V	1500W	35m³/h	20m	2.5"	5m	＜430V	≥1.3*PUMP POWER
ADQD50-10-110-1500	85V-280V	110V-350V	1500W	50m³/h	10m	3"	5m	＜430V	≥1.3*PUMP POWER
