3SDM2 Series Sand Resistant Borehole Submersible Pump for Water Supply From Wells

Minimum well diameter : 3"
Rated  capacity  : 2m³/h
Sand Resistant Impeller
Borehole Submersible Pump
for Water Supply From Wells
Get A Quote
Download
×
Get password
submit
PREV：3SDM3 Efficiency Multi-stage Impeller Stainless Steel Borehole Submersible PumpNEXT：3.5SDM2 Double Rings Hole Design Stainless Steel Thickened Base Borehole Submersible Pump

Description :

This innovative pump is specifically engineered to provide efficient and reliable water supply in remote areas where electricity is scarce or unreliable. With its advanced technology and superior performance, this pump is a game-changer in the field of water pumping systems. With its small occupation of land, high machine barrel design, sand-resistant impeller, and submersible operation, this pump provides reliable and efficient performance in borehole applications with limited space and sand content.


Motor and Pump :

Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO 9903

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 3"



Options on request :

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor



CE Certification :

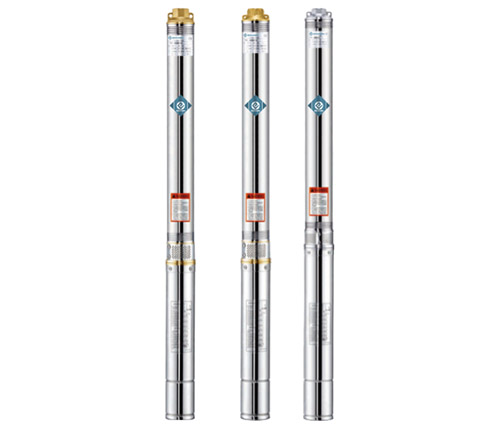

Product Line :

Components and Materials :

Materials Table

NO.

Part

Material

1

Pump external casing

AISI 304 SS

2

Delivery casing

Cast-Cu ASTM C85500 / AISI304SS

3

Suction lantern

Cast-Cu ASTM C85500 / AISI304SS

4

Diffuser

Plastic.PC

5

Impeller

Plastic.POM

6

 Pump shaft

AISI 304 SS

7

Shaft coupling

AISI 304 SS

8

Wear ring

AISI 304 SS

9

Motor external casing

AISI 304 SS

10

Top cover

①　Cast-Cu ASTM C85500

②　Cast-iron ASTM NO.30

11

Bottom support

AISI 304 SS

12

Mechanical Seal

Special seal for deep well (Graphite-Ceramic/TC)

13

Seal lubricant oil

Oil for food machinery and pharmaceutic use

14

Motor shaft

AISI 304 SS-ASTM 5140

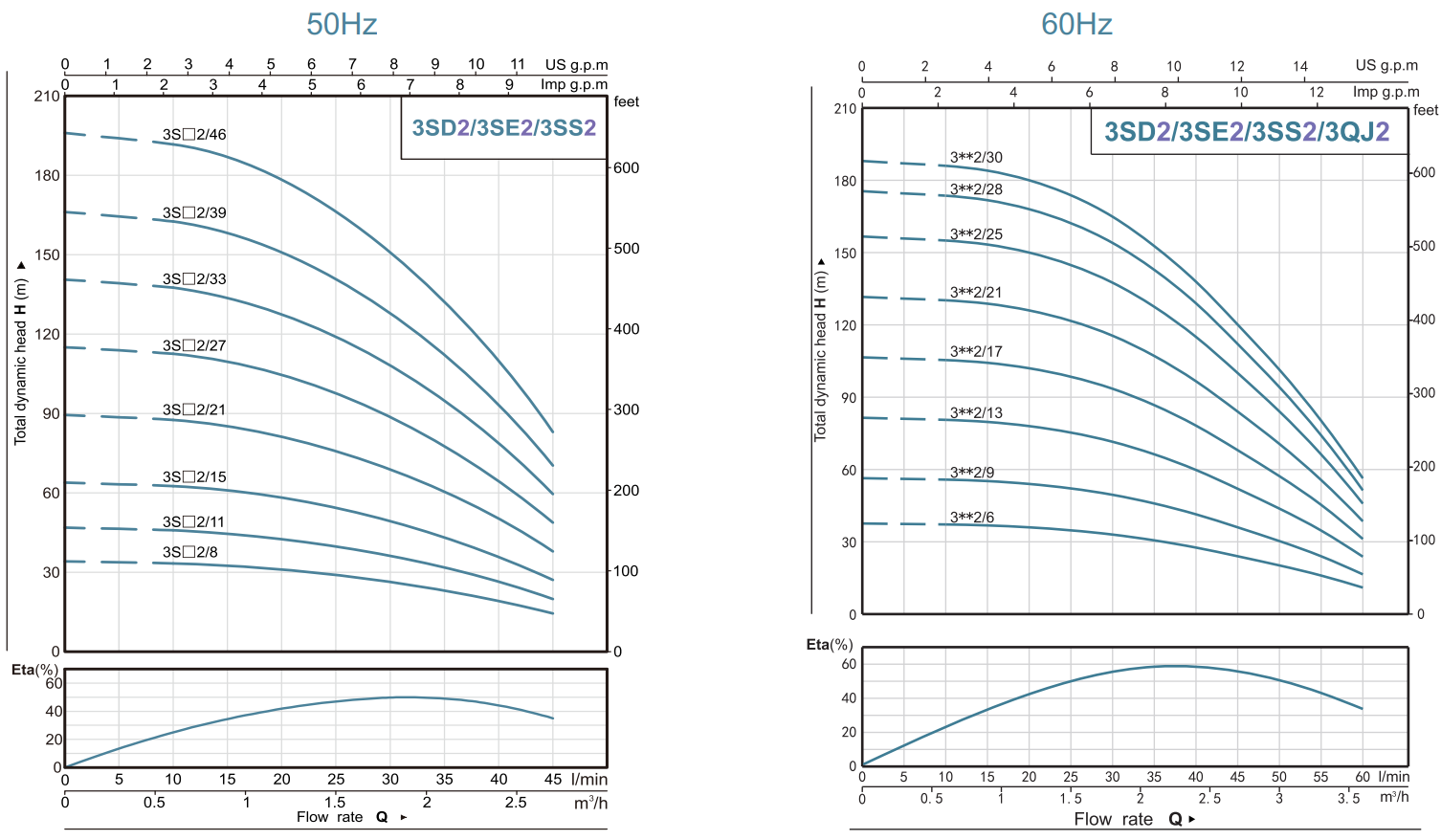

Performance Curves :



Performance Data ( 50Hz ) :

Model

Power

Deliver  n≈2850r/min

1~220-240V

3~380-415V

KW

HP

Q(m³/h)

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

Q(l/min)

0

5

10

15

20

25

30

35

40

45

3SDM2/8

3SD2/8

0.18

0.25

H(m)




34

34

33

33

31

29

26

23

19

14

3SDM2/11

3SD2/11

0.25

0.33

47

46

45

45

43

40

36

32

27

20

3SDM2/15

3SD2/15

0.37

0.5

64

63

62

61

58

54

49

43

36

27

3SDM2/21

3SD2/21

0.55

0.75

89

89

87

85

81

76

68

60

51

38

3SDM2/27

3SD2/27

0.75

1

115

114

112

110

104

97

88

77

65

49

3SDM2/33

3SD2/33

0.92

1.25

141

139

136

134

128

119

108

95

80

60

3SDM2/39

3SD2/39

1.1

1.5

166

164

161

159

151

141

127

112

94

70

3SDM2/46

3SD2/46

1.5

2

196

194

190

187

178

166

150

132

111

83



Performance Data ( 60Hz ) :

Model

Power

Deliver

1~110V/220V

3~220V/380V

KW

HP

Q(m³/h)

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.0

3.3

3.6

Q(l/min)

0

5

10

15

20

25

30

35

40

45

50

55

60

3SDM2/6

3SD2/6

0.25

0.33

H(m)

38

37

37

37

36

35

33

31

28

24

20

16

11

3SDM2/9

3SD2/9

0.37

0.5

56

56

56

55

54

52

49

46

41

36

30

24

16

3SDM2/13

3SD2/13

0.55

0.75

81

81

81

80

78

75

71

66

60

52

44

35

24

3SDM2/17

3SD2/17

0.75

1

107

106

105

104

102

98

93

87

78

68

57

45

31

3SDM2/21

3SD2/21

0.92

1.25

132

131

130

129

126

121

115

107

97

84

71

56

38

3SDM2/25

3SD2/25

1.1

1.5

157

156

155

153

150

144

137

127

115

100

84

67

46

3SDM2/28

3SD2/28

1.5

2

175

175

174

172

168

161

154

143

129

112

94

75

51

3SDM2/30

3SD2/30

1.5

2

188

187

186

184

180

173

165

153

138

120

101

80

55
