SF Series 1 Inch Carbon Steel 6Bar and 8Bar Vertical Pressure Tank with Flange Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • SF Series 1 Inch Carbon Steel 6Bar and 8Bar Vertical Pressure Tank with Flange
Carbon Steel Pressure Tank

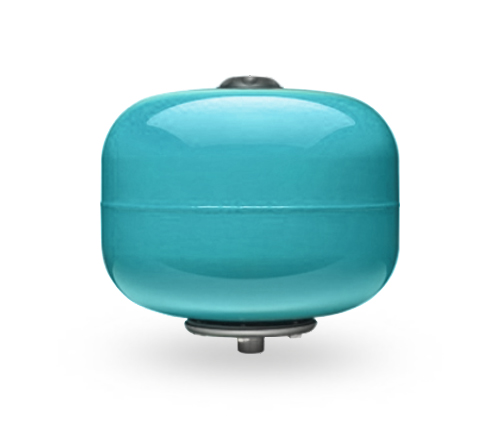

SF Series 1 Inch Carbon Steel 6Bar and 8Bar Vertical Pressure Tank with Flange

Carbon steel flange
Working temperature: -10°C~99°C (Butyl)
-10°C~99°C (EPDM)
0°C~77°C (Nature rubber)
Get A Quote
Download
×
Get password
submit
PREV：VT2 Series Vertical Tank for Solar SystemNEXT：VT Series 3L to 50L Vertical Carbon Steel Pressure Tank with Flange
Specification

Replaceable membrane pressure tanks
Carbon steel flange
Working temperature :

-10°C~99°C (Butyl)
-10°C~99°C (EPDM)
0°C~77°C (Nature rubber)

Technical Data :

Model

Max. pressure

Diameter

Height

Precharge Pressure

Connector

Packing

bar

mm

mm

bar

CBM

SF24L

6; 8

330

335

 1.8-2.0

1"

 0.0405

SF25L

6; 8

350

325

 1.8-2.0

1"

 0.0441

SF26L

6; 8

360

365

 1.8-2.0

1"

 0.0520

RT24L

6; 8

350

390

1.8-2.0

1"

0.0525
