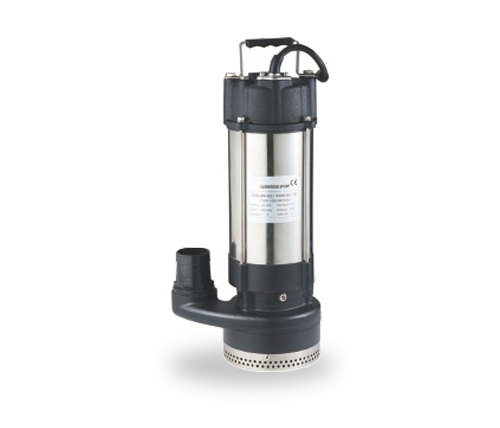

SPA6 Series 220V Stainless Steel Submersible Pump for Field Irrigation and Drainage

 Rated Voltage : 220V
Outlet : 50 mm
Stainless Steel Screw
Submersible Pump
for Field Irrigation and Drainage
Get A Quote
Download
×
Get password
submit

Description :

This SPA6 Series 220V Stainless Steel Submersible Pump is the perfect solution for all your irrigation and drainage needs.
Crafted with utmost precision and durability, this submersible pump is designed to withstand the harshest conditions. Its stainless steel construction ensures long-lasting performance, making it a reliable choice for both residential and commercial use.
Equipped with a small electrical motor, this pump delivers exceptional power while consuming minimal energy. It is specifically engineered for efficient water pumping, making it an ideal choice for urban well water pumping, field irrigation, and drainage.
Whether you need to water your garden, supply water to your household, or drain basements or construction sites, this submersible pump is up to the task. Its compact size allows for easy installation and transportation, making it a convenient choice for various applications.
With its professional design and reliable performance, the SPA6 Series 220V Stainless Steel Submersible Pump is the ultimate choice for anyone in need of small electrical irrigation and drainage equipment. Invest in this high-quality pump and experience efficient and hassle-free water management like never before.
If you have additional needs on your own,you can choose float switch and other voltages or frequency. Lastly , we offer 1 year warranty according to  our general sales conditions.


Motor Condition :

Max immersion depth : 5m
Max liquid temperature : 40℃
Copper winding
Built-in thermal protector
Insulation class : B
Protection class : IPX8

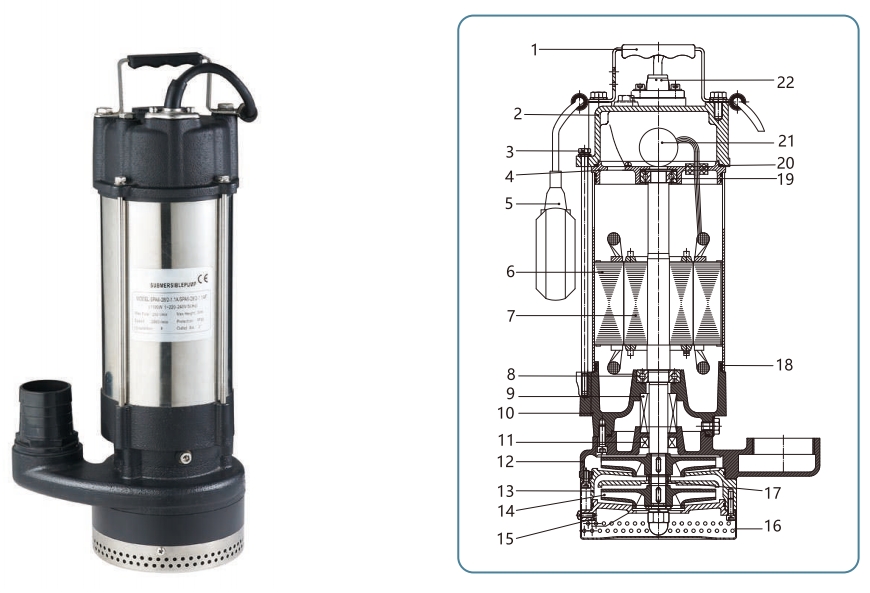

Material of construction :

NO.

NAME

MATERIAL/SPEC.

1

Handle

Stainless steel

2

Capacitor Cover

HT200

3

Screw

Stainless steel

4

Upper COVER



5

Float Switch(optional)



6

Motor

AISI201 motor casing

7

Rotor

45#Carbon steel&2Cr13 Stainless

8

Bearing



9

 Mechanical Seal

Ceramic/Graphite

10

Oil Chamber

HT200

11

Oil Seal

NBR

12

Pump body

HT200

13

Guide leaf

HT200

14

Impeller

HT200

15

Pump cover

HT200

16

Filter Mesh

Stainless steel

17

Shaft Sleeve



18

O Ring

NBR

19

Bearing



20

O Ring

NBR

21

Capacitor



22

Cable Protector

Rubber

Performance Curves :

Performance Data :
