Size : 0.5" to 2"
Specification : HEX CPVC

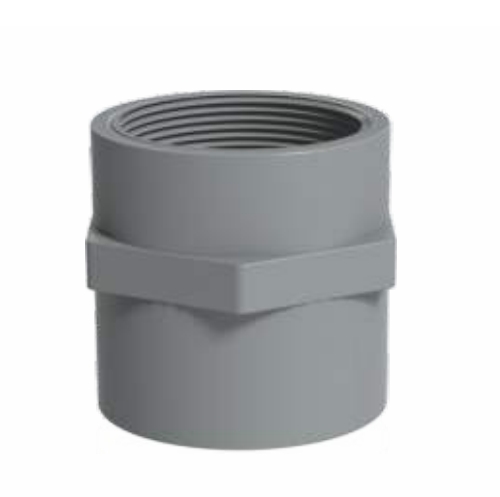

Male or Female Thread Adapter
Size : 0.5" to 2"
Specification : HEX CPVC
Male or Female Thread Adapter

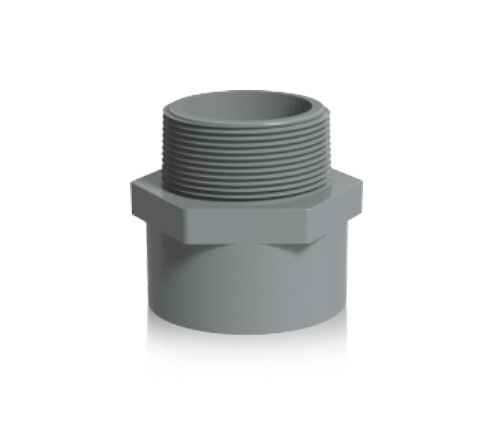

The 0.5" to 2" Hex CPVC Male Adapter serves as adaptability, facilitating the connection between CPVC pipes having an incorporated thread to another component or threaded aperture. The hexagonal configuration of this adapter offers a substantial screw surface area for uncomplicated installation and disassembly. These units are typically employed within plumbing and irrigation systems utilizing CPVC piping.
|
Type: |
HEX Adapter (S76,S77) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
Water |
|
Body material: |
CPVC |
|
Color: |
Grey body |
|
Function: |
Transport Water |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,homes,hospitals,hotels,food plant,ect |
|
Power: |
Manual |
|
Port Size: |
1/2” to 2” |
|
Standard: |
ASTM |
|
Packing: |
Carton box or as per customer's request |
|
Thickness |
SCH80 |
|

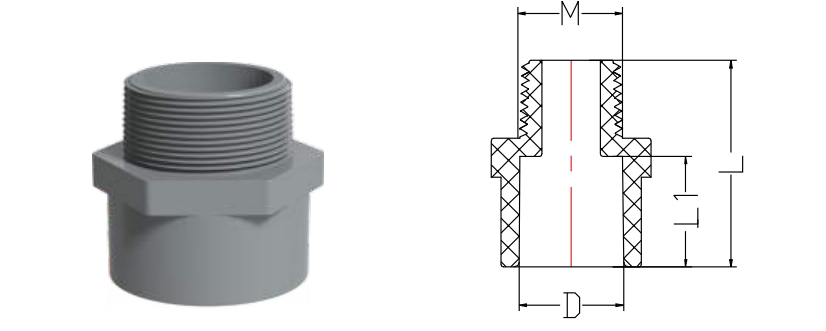

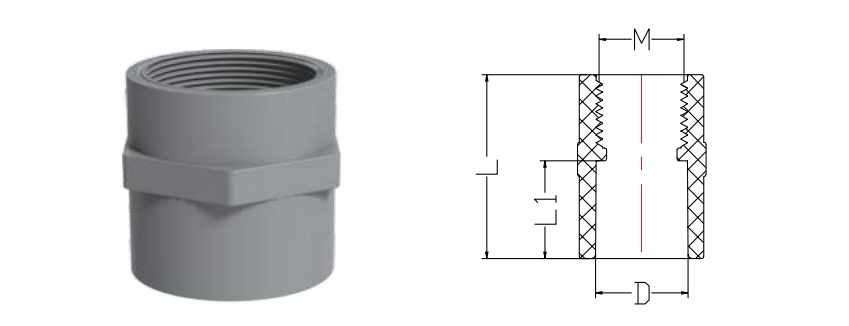

Size (inch) |
D(mm) |
L1(mm) |
L(mm) |
M |
|
1/2” |
21.34 |
22.8 |
42.8 |
1/2” |
|
3/4” |
26.67 |
25.9 |
47.9 |
3/4” |
|
1” |
33.4 |
29.1 |
55.5 |
1” |
|
1-1/4” |
42.16 |
32.8 |
60.3 |
1-1/4” |
|
1-1/2” |
48.26 |
36.0 |
65.0 |
1-1/2” |
|
2” |
60.32 |
39.1 |
71.7 |
2” |
