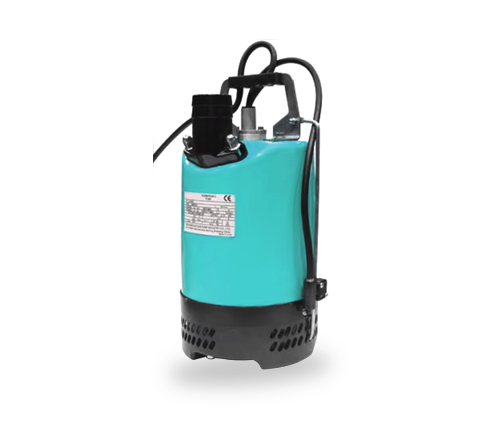

FBM(E) Series 230V Anti-corrision Unique Single Leaf Structure Sewage Pump for Mud Water

Rated voltage : 230V
Insulation Class : F
Anti-corrision
Unique Single Leaf Structure
Sewage Pump
for Mud Water
Get A Quote
Download
×
Get password
submit

 Key Features :

The FBM(E) Series 230V Anti-corrosion Unique Single Leaf Structure Sewage Pump for Mud Water is a highly efficient and reliable solution for handling sewage and mud water. Designed with a professional tone, this product description highlights the key features of this exceptional pump.

Featuring a unique single leaf structure, this sewage pump ensures smooth and uninterrupted operation, even in the most demanding conditions. Its anti-corrosion properties make it highly resistant to rust and other forms of deterioration, ensuring long-lasting performance and durability.

Equipped with a powerful 230V motor, this pump delivers exceptional pumping capacity, efficiently removing sewage and mud water with ease. Its high efficiency design minimizes energy consumption, making it an environmentally friendly choice.

The FBM(E) Series sewage pump is designed for easy installation and maintenance, with a user-friendly interface that allows for hassle-free operation. Its compact size and lightweight construction make it ideal for both residential and commercial applications.

Whether you need to pump sewage from a basement or handle mud water in industrial settings, the FBM(E) Series 230V Anti-corrosion Unique Single Leaf Structure Sewage Pump is the perfect choice. Trust in its professional-grade performance and enjoy peace of mind knowing that you have a reliable solution for your sewage and mud water pumping needs.

Pump Condition :

Max immersion depth : 10m
Max liquid temperature : +40 ℃
PH : 6.5-8.5
Insulation class : F
Protection class : IP68
Max water depth : 10m

Options on request :

Other voltages or frequency
Float Switch : No need to look after
Intelligent model
(Only FBM series has the last two options )

Warranty : 1 year

(according to our general sales conditions )

Materials table :

Materials Table ( FBM Series )

NO.

Name

Material

01

Hose coupling

Aluminum die casting

02

Handle

Rubber&steel

05

Upper cover

Aluminum die casting

06

Up-Bearing house

Cast iron

10

Seal house

Aluminum die casting

11

Motor body

Aluminum die casting

12

Outer casting

Steel

14

Impeller

Ductile iron

15

Diffuser

NBR

16a

Plate

NBR & Steel

16b

Intel Plate

NBR & Steel

21a

Oil riser

NBR

21b

Sand guard

LDPE

25

Strainer

Steel

27

Stator



28

Rotor

Shaft : AISI420SS

31a

Bearing

Ball bearing

31b

Bearing

Ball bearing

32

Capacitor



33

Motor protector



34

Mechanical seal

Ceramic-Sic/Carbon-Ceramic

47

Cable

H07RN-F



Materials Table( FBME Series )

NO.

Name

Material

01

Hose coupling

Aluminum die casting

02

Handle

Rubber&steel

05

Upper cover

Aluminum die casting

06

Up-Bearing house

Cast iron

10

Seal house

Aluminum die casting

11

Motor body

Aluminum die casting

12

Outer casting

Steel

14

Impeller

Ductile iron

15

Diffuser

NBR

16a

Plate

NBR & Steel

16b

Intel Plate

NBR & Steel

21a

Oil riser

NBR

21b

Sand guard

LDPE

25

Strainer

Steel

27

Stator



28

Rotor

Shaft : AISI420SS

31a

Bearing

Ball bearing

31b

Bearing

Ball bearing

32

Capacitor



34

Mechanical seal

Ceramic-Sic/Carbon-Ceramic

47

Cable

H07RN-F

88

Controller block



Performance Curves :


Performance Data :
