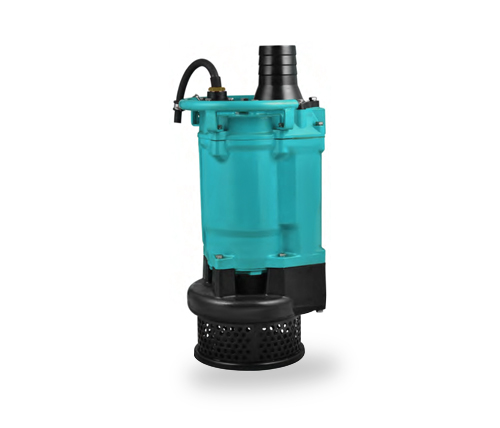

KBZ Series 400V 1.5 to 15KW 25M Depth Submersible Drainage Pump for Civil Engineering

Rated voltage :  400V
Motor power : 1.5-15KW
Max. Water depth : 25M
Submersible Drainage Pump
Get A Quote
Download
×
Get password
submit
PREV：V Series Small electrical Field Progress Steadily Sewage Pump NEXT：KBZE Series 1.5kW to 5.5kW 380V Intelligent Drainage and Slurry Pump for Quarries

Description

The body of motor and pump is made of rigid cast iron for long-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high preasure.

Semi-open impller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.

Effective motor cooling due to discharge channel cast as part of the motor housing.

Space economically by a top outlet.

Discharge 50mm(2") to 150mm(6"),motor 1.5kW (2HP) to 15 kW (20HP).

Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.



Specification

Capacity:up to 160m3/h

Head:up to 57 meters

Power: 1.5kW (2HP) to 15 kW (20HP)

Power supply:three phase 400V ±10%t50Hz; 380V±10%,60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Water temperature:up to 40 degree

water depth: 25m

Application

Civil engineering

Mines,quarries,coal ore & slurries

Sewage treatment plants

General pumping purposes


Special features on request

Other voltages

The length of cable is optional

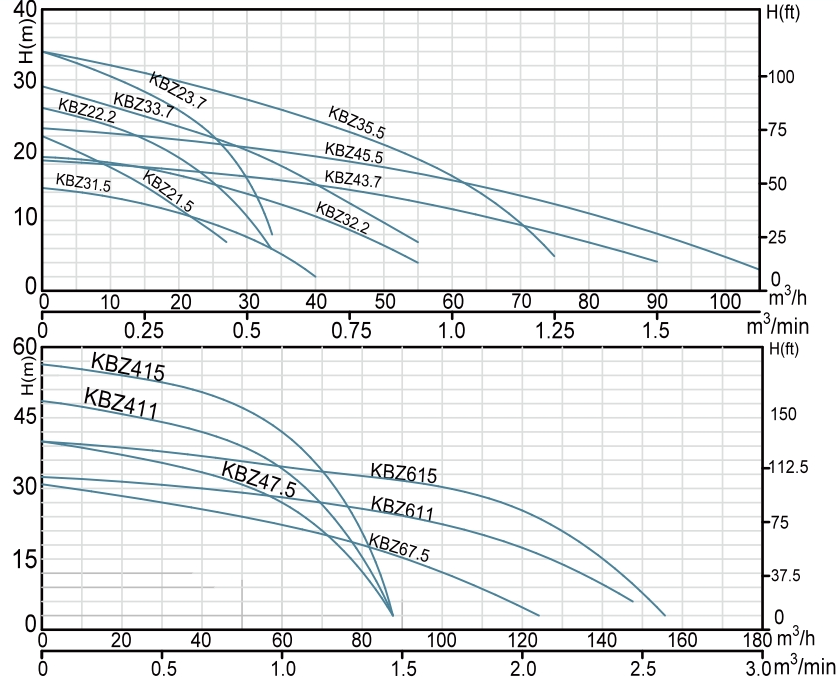

Performance Curves

Technical Data :

Model (50Hz)

Outlet

Motor Power

Rated Current (400V)

Rated Capacity

Rated Head

Max. Capacity

Max. Head

Impeller Passage

mm

KW

HP

A

m3/h

m

m3/h

m

mm

KBZ21.5

50

1.5

2

3.5

15

15

27

22

8.5

KBZ31.5

80

1.5

2

3.5

30

8

40

14.5

8.5

KBZ22.2

50

2.2

3

5

18

20

33

26

8.5

KBZ32.2

80

2.2

3

5

36

11

55

19

8.5

KBZ23.7

50

3.7

5

7.7

12

30

33

34

8.5

KBZ33.7

80

3.7

5

7.7

30

20

55

29

8.5

KBZ43.7

100

3.7

5

7.7

60

11.5

90

18.5

8.5

KBZ35.5

80

5.5

7.5

11.4

36

25

75

34

8.5

KBZ45.5

100

5.5

7.5

11.4

60

16

105

23

8.5

KBZ47.5

100

7.5

10

15

48

30

84

40

11.5

KBZ67.5

150

7.5

10

15

90

15

124.8

31

19.5

KBZ411

100

11

15

22

60

35

84

48.5

11.5

KBZ611

150

11

15

22

102

22

147

32

19.5

KBZ415

100

15

20

29.5

60

42

84

56

11.5

KBZ615

150

15

20

29.5

102

30

156

40

19.5

Model (60Hz)

Outlet

Motor Power

Rated Current (400V)

Rated Capacity

Rated Head

Max. Capacity

Max. Head

Impeller Passage

mm

KW

HP

A

m3/h

m

m3/h

m

mm

KBZ21.5

50

1.5

2

3.5

15

16.5

27

23

8.5

KBZ31.5

80

1.5

2

3.5

30

9

45

15

8.5

KBZ22.2

50

2.2

3

5.1

18

20

31

28

8.5

KBZ32.2

80

2.2

3

5.1

30

13

47

20.5

8.5

KBZ23.7

50

3.7

5

8

12

30

50

33

8.5

KBZ33.7

80

3.7

5

8

30

22

55

31

8.5

KBZ43.7

100

3.7

5

8

60

11.5

96

18.5

8.5

KBZ35.5

80

5.5

7.5

11.6

36

25

69

38

8.5

KBZ45.5

100

5.5

7.5

11.6

60

16

102

24.4

8.5

KBZ47.5

100

7.5

10

15.4

48

30

80

41

11.5

KBZ67.5

150

7.5

10

15.4

90

15

127

31

19.5

KBZ411

100

11

15

22.5

60

35

84

48.5

11.5

KBZ611

150

11

15

22.5

102

22

147

32

19.5

KBZ415

100

15

20

30

60

42

84

57

11.5

KBZ615

150

15

20

30

102

27

160

39

19.5
