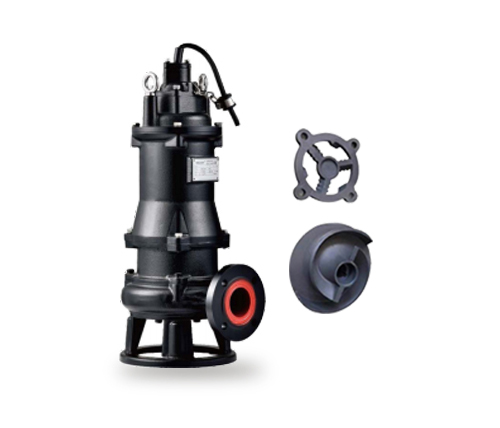

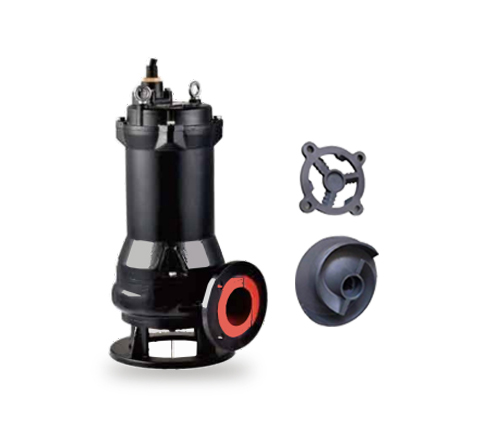

WQ-2Z Series Efficient Hydraulic Performance Non-clog Impeller Submersible Sewage Pump

Description :

Series submersible sewage pumps are an essential component in wastewater management systems. These pumps are specifically designed to handle the challenging task of transferring sewage and waste materials efficiently and effectively. Today, we will delve into the remarkable features of the WQ-2Z Series Efficiency Hydraulic Performance Non-clog Impeller Submersible Sewage Pump.

The key point of this pump lies in its unique spiral structure and sharp blade impeller. This design ensures not only high-efficiency hydraulic performance but also exceptional cutting performance. The impeller's ability to slice through waste materials effortlessly is truly remarkable.

Now, let's explore the significance of this pump's features. Firstly, the efficient hydraulic performance guarantees smooth and reliable operation, minimizing the risk of clogging and blockages. This is crucial in sewage systems where any disruption can lead to severe consequences.

Secondly, the cutting performance of the impeller is a game-changer. It enables the pump to handle solid waste materials with ease, preventing any potential obstructions in the system. This ensures a continuous flow of wastewater, such as cotton cloth and fiber fabrics can easily pass through pipes after being cut into pieces,maintaining the overall functionality of the sewage system.

In conclusion, the WQ-2Z Series Efficiency Hydraulic Performance Non-clog Impeller Submersible Sewage Pump is a remarkable solution for sewage management. Its unique design, incorporating a spiral structure and sharp blade impeller, guarantees both efficient hydraulic performance and exceptional cutting performance. With this pump, you can ensure the smooth operation of your sewage system, minimizing the risk of clogging and blockages. Embrace the power of this innovative technology and experience the difference it can make in your wastewater management.

Characteristics :

A "cutter mechanism" is provided by the combined action of a carbide blade integrated into a non-clog impeller and the5awshaped inner surface of a suction cover. This Construction ensures that fibrous foreign matter is cut up, and sewage is transferred without clogging.

Applications :

1. For wastewater discharge from Industry, shopping mall, hospital, hotel.

2. For domestic sewage and storm-water drainage of uptown, parking lot and municipal engineering3 For sewage discharge of sewage treatment plant and farm.

4. For pumping muddy water and lye of construction factory and mine.

5 For pumping clean water of agriculture and aquaculture.

Operating Conditions :

Power : 0.75~7.5kW ,2P
50Hz : 2850rpm
60Hz : 3450rpm
Water temperature : up to 40°C
Max.water depth :10m
Capacity : up to 132m'/hHead: up to 41 meters
Discharge of liquid :1.3g/cm
PH : 6 to 10
Insulation class : F
Protection class : IP68
Cable length : 8m
Warranty : 1 year(according to our general sales conditions)

Options on request :

Other voltages
The length of cable is optional

Installation :

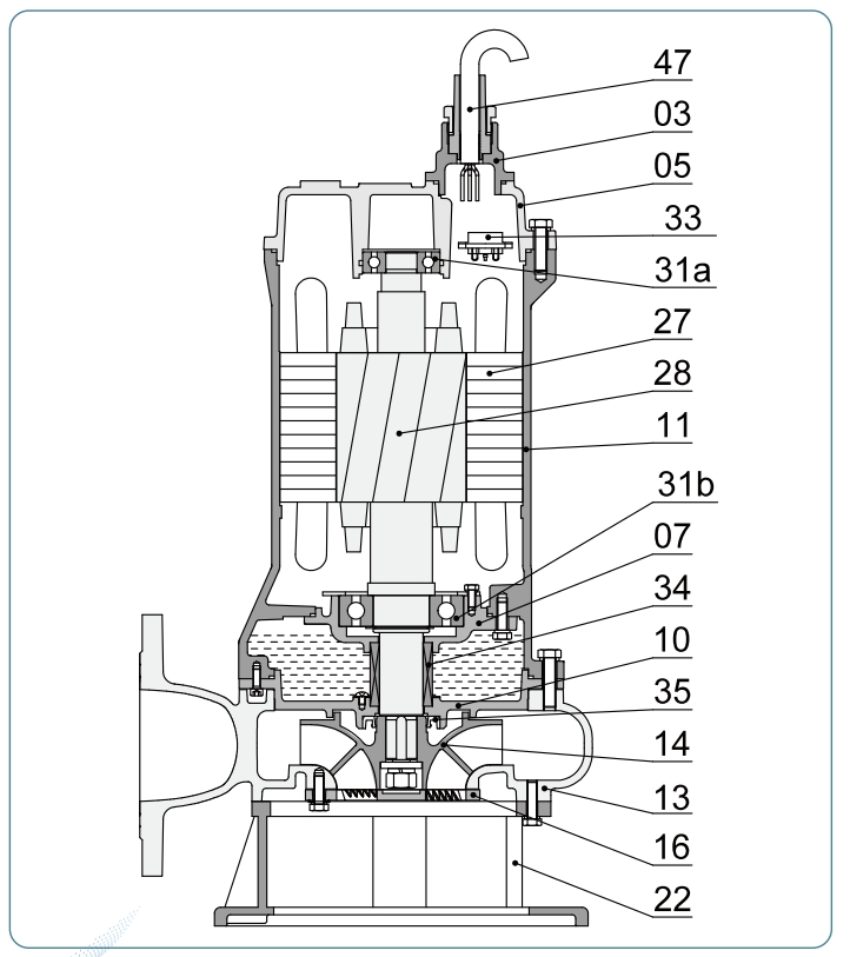

Components and material :

Materials Table
NO.	Name	Material
01	Hose coupling	Cast iron
01a	Hose coupling	Cast iron
03	Terminal box	Cast iron
05	Upper cover	Cast iron
07	Bearing house	Cast iron
10	Seal bracket	Cast iron
11	Motor body	Cast iron
13	Pump body	Cast iron
14	Impeller	High chrome alloy
16	Inlet plate	High chrome alloy
17	Coupling adapter	Cast iron
22	Seat assembly	Cast iron
22a	Coupling Seat	Cast iron
22b	Upper guide support	Cast iron
27	Stator
28	Rotor	Shaft : AISI304SS
30	Flange	Cast iron
31a	Bearing	Ball bearing
31b	Bearing	Ball bearing
33	Motor protector
34	Mechanical seal	Sic-Sic / Carbon-Ceramic
35	Oil seal
47	Cable

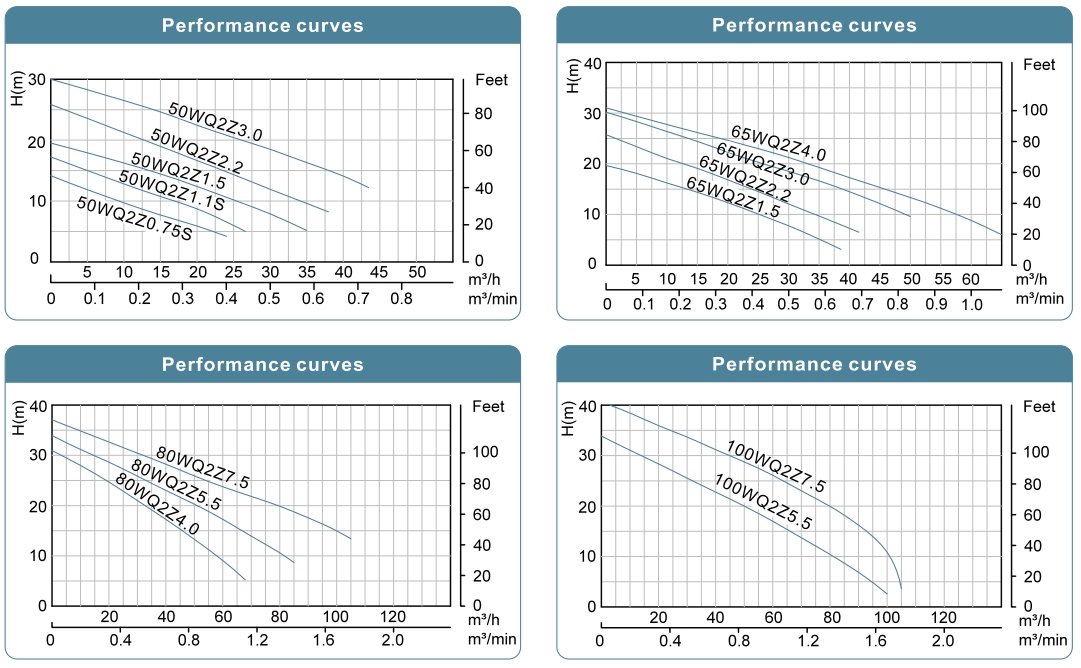

Performance Curves :

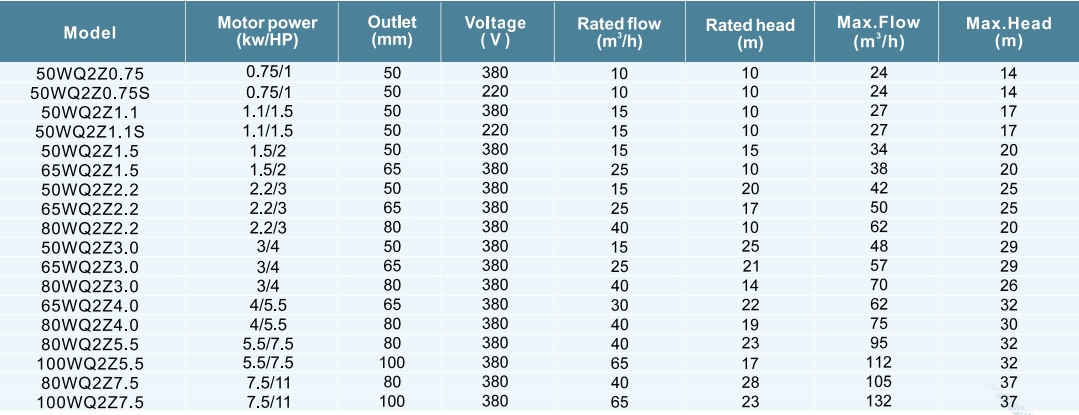

Technical Data :
