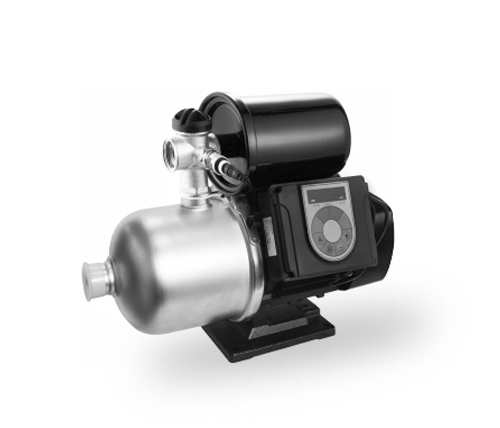

EMF Series Guide Vane Cover Configuraion Bearing Sleeve Design Stainless Steel Horizontal Multistage Pump

Guide Vane Cover Configuraion
Stainless Steel material
Horizontal Multistage Pump

Get A Quote

Download

Get password

PREV：EMIH-Z(T) Series Two-pole Induction Motor Horizontal Stainless Steel Water Surface Centrifugal Pump with Intelligent Controller NEXT：EMI Series Self-suction Design Cast Iron Horizontal Multistage Pump

Description
Components
Curves

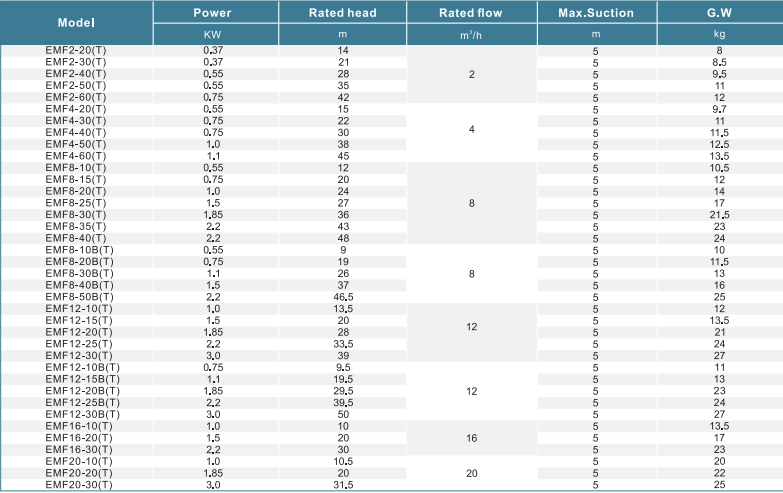

Performance Data

Key Features :

1、Guide vane cover configuraion

2、Bearing sleeve design
3、Horizontal configuration : The horizontal design ensures a compact footprint, making it suitable for installations where space is limited.
4、Multistage pump : It is engineered with precision and is made from high-quality materials to ensure durability and longevity. Its advanced design allows it to operate quietly and efficiently, making it an excellent choice for those who require a reliable and efficient water pump.

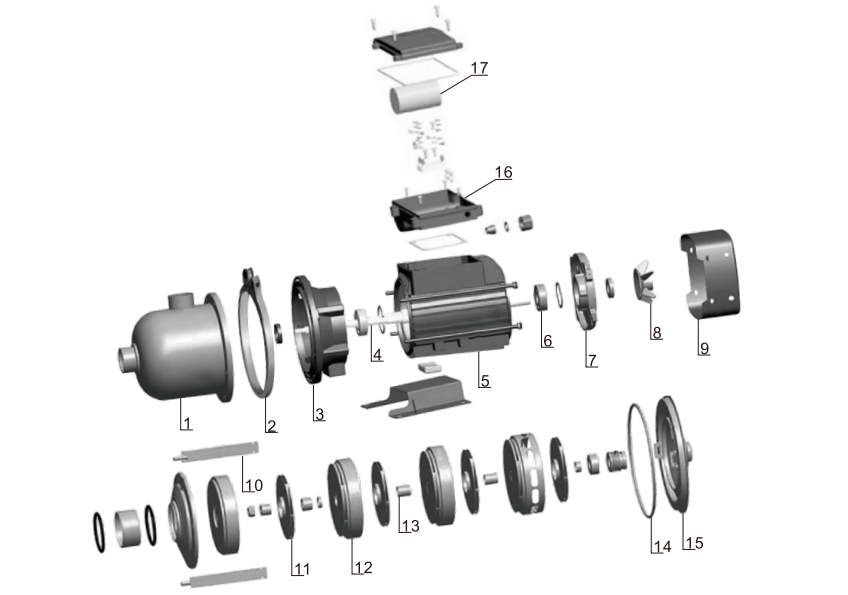

Components :

Materials Table
NO.	Part	Material
1	Pump Casing	HT200
2	Clip
3	Pump Body
4	Shaft and Rotor
5	Motor Case	Aluminum
6	Ball Bearing
7	Motor Cover	Cast iron
8	Fan
9	Fan Cover
10	Guide vane cover
11	Impeller	Stainless Steel
12	Diffuser
13	Bearing sleeve
14	“O” ring
15	Support	HT200
16	Capacitor Holding Box
17	Capacitor
