Home / Products / Commercial Multistage Pump / Horizontal Multistage Pump / (HMC170) Multi-stage Self-priming Pump

(HMC170) Multi-stage Self-priming Pump Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • (HMC170) Multi-stage Self-priming Pump
Horizontal Multistage Pump

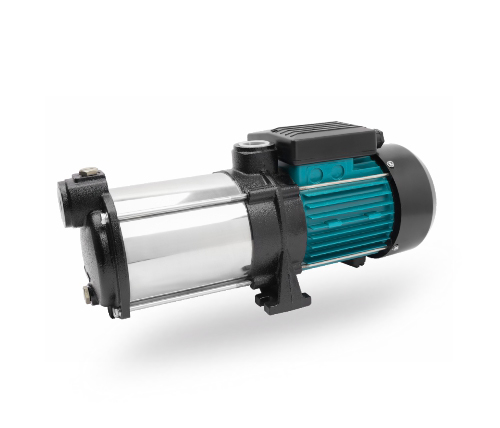

(HMC170) Multi-stage Self-priming Pump

Copper winding
Built-in thermal protector
Stainless steel welded shaft
Impeller: Brass /AISI SS304 / PPO
Get A Quote
Download
×
Get password
submit
PREV：HMC-SH Series Factory Direct Sale Compact Structure Applicabe to Multiple Environments Stainless Steel Water Surface Centrifugal PumpNEXT：No next article

Applications

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications.
For garden use and irrigation.



Operating conditions

Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction: 8M



Motor and Pump

Copper winding
Built-in thermal protector
Stainless steel welded shaft
Impeller: Brass /AISI SS304 / PPO



Options on request

Different cable length
Can be connected with a pressure controller
Can be assembled with a tank system
Voltage and Frequency 50Hz or 60Hz



Warranty: 1 year

(According to our general sales conditions).


Model Power Inlet/Outlet Max. Flow Max. Head Max. Suction
kW HP (L/min) (M) (M)
HMC170-2S 0.75 1 1.25" x 1.25" 165 26 8
HMC170-3S 1 1.3 1.25" x 1.25" 170 40 8
HMC170-4S 1.35 1.8 1.25" x 1.25" 170 52 8
HMC170-5S 1.65 2.2 1.25" x 1.25" 170 65 8
