China High Quality HRS25/6GF Series Iron Flange Ceramic Shaft Water Circulation Pump Company Suppliers

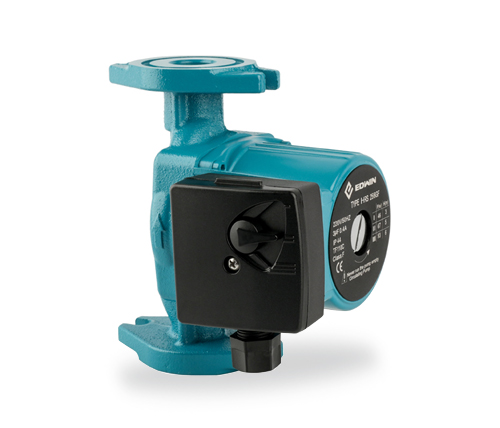

HRS25/6GF Series Iron Flange Ceramic Shaft Water Circulation Pump

Power (W) : 93/67/46

Max. flow (m³/h) : 3.5/2.3/1.3

Max. head (m) : 6/5/3
Supply Iron Flange
Ceramic shaft

Get password

Description :
The HRS25/6GF Series Supply Iron Flange Ceramic Shaft Water Circulation Pump , designed for optimal performance , is perfect for heating systems in city mansions and suburban villas.

With its industrial-grade capabilities, it seamlessly matches with various industrial equipment, providing efficient water circulation for cooling air-conditioning units, boilers, and even solar energy systems.

Not only does this pump excel in supplying hot water, but it also excels in maintaining warmth, ensuring a comfortable environment throughout.

Experience the reliability and efficiency of the HRS25/6GF Series Supply Iron Flange Ceramic Shaft Water Circulation Pump, the perfect choice for your heating and water supply needs.

Operating conditions :

Maximum fluid temperature up to +110^oC

Copper winding

Built-in thermal protector

Ceramic shaft

Ceramic bearing

PP impeller

Supply iron flange for each unit
Warranty : 1 year

Options on request :

Different cable length and plug
Voltage and frequency 50Hz or 60Hz

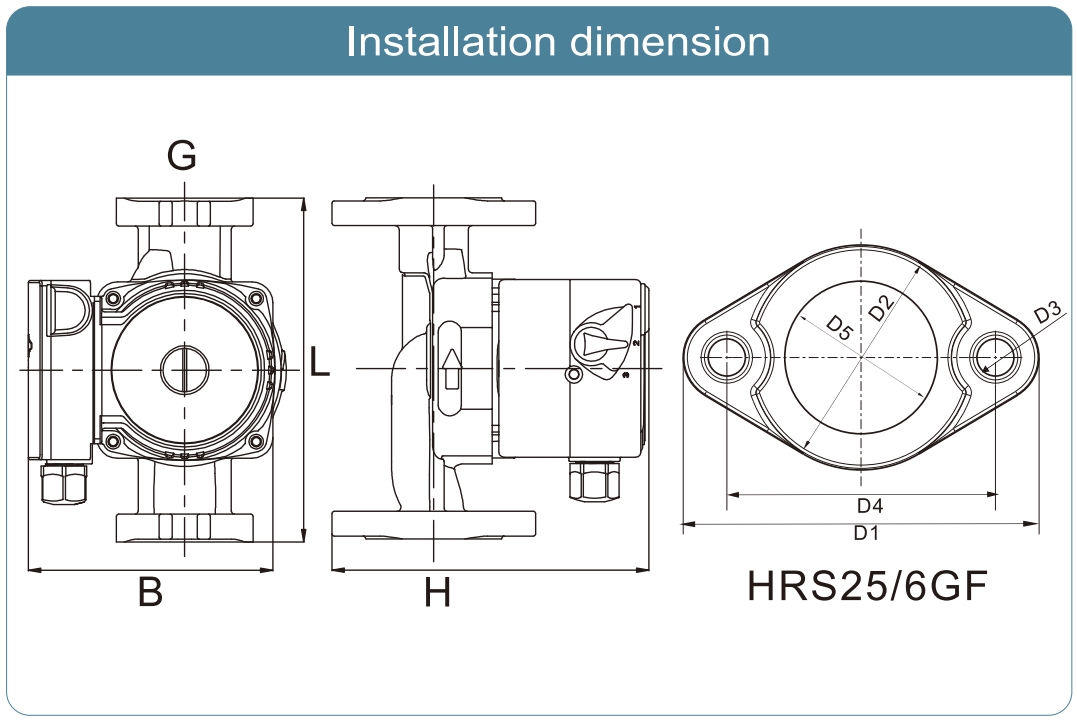

Installation Dimension :

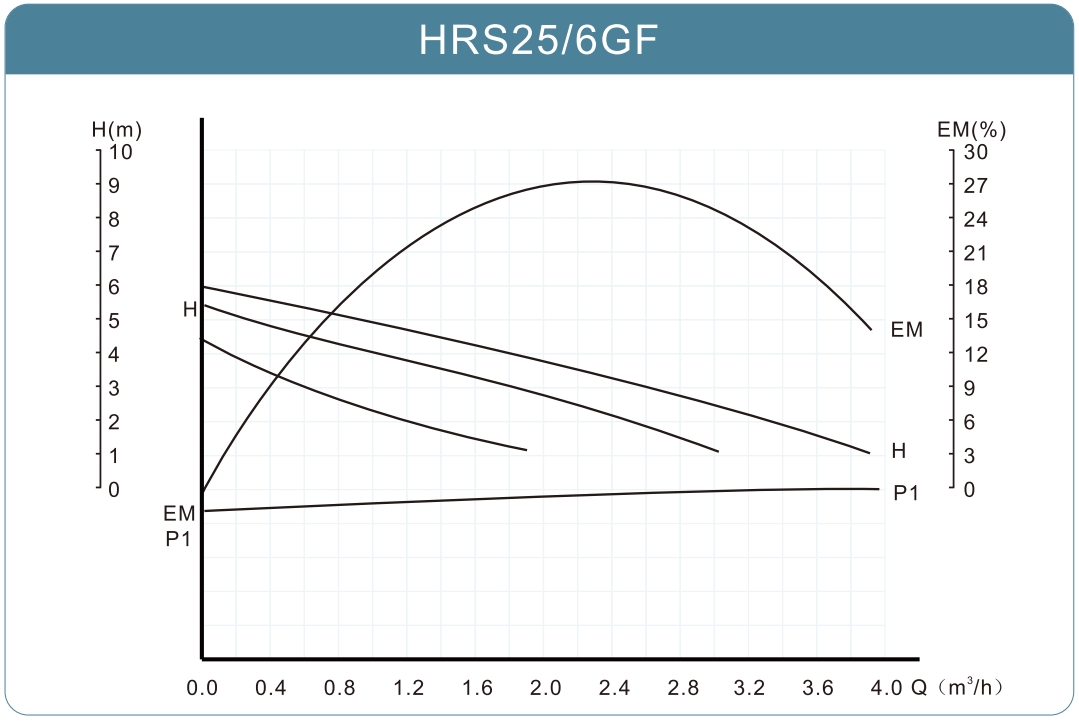

Performance Data :

Model	Power	Max. Flow	Max. Head	Voltage			Pump Dimension (mm)				Flange Dimension (mm)				Weight (kg)
Model	W	(m³/h)	(m)	220V/50Hz	220V/60Hz	127V/60Hz	L	B	H	G	D1	D2	D3	D4	Weight (kg)
HRS25/6GF	93	3.5	6	★	★	★	166	118	154	1.5”	106	67	13.5	80	3.0
HRS25/6GF	67	2.3	5	★	★	★	166	118	154	1.5”	106	67	13.5	80	3.0
HRS25/6GF	46	1.3	3	★	★	★	166	118	154	1.5”	106	67	13.5	80	3.0
