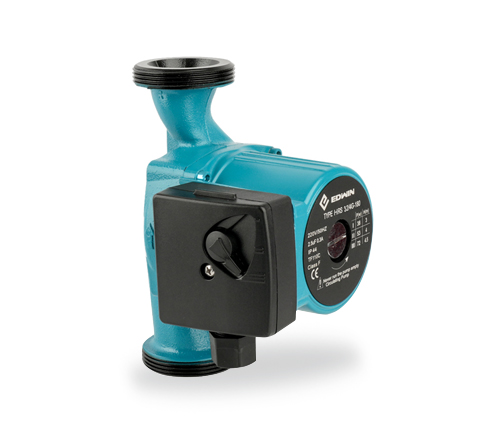

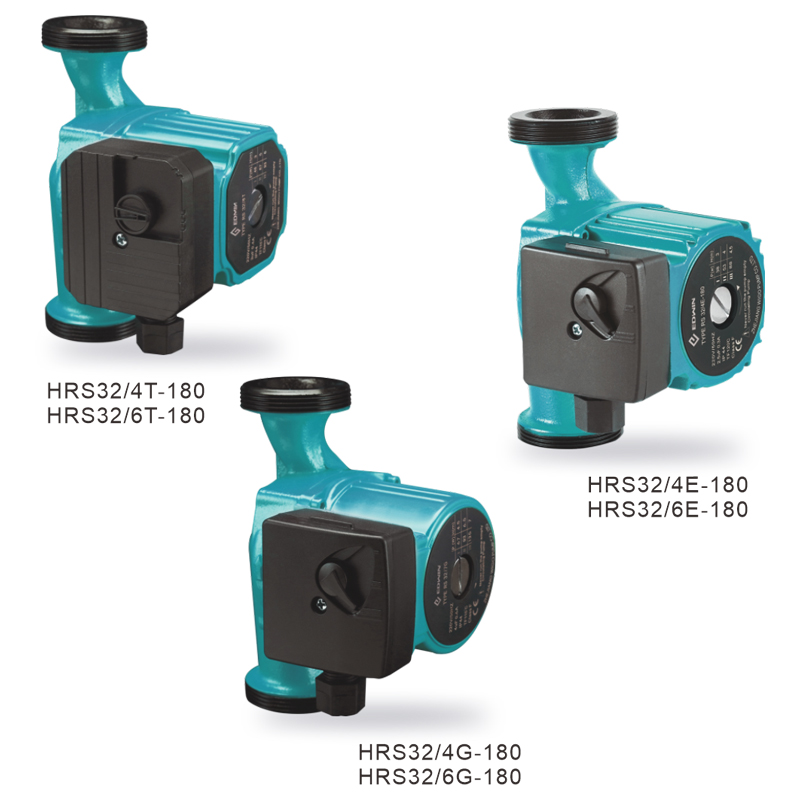

HRS32/4-180; HRS32/6-180 Low Noise Hot And Cold Water Circulation Pump

Key Features :

1) Apply to heating system

2) System pressure: 10 bar

3) Operating Condition:

          Ambient Temperature: 0℃~40℃

          Ambient Humidity: 95%

          Liquid Temperature: -10℃~110℃

          Ambient temperature must be lower than liquid temperature, in order to avoid condensate water produced in the interior of stator

4) Liquid: Clean, non-corrosive and non-explosive liquids, without any particle, fiber or mineral oil.

5) Water/Glycol mixtures max. mixing ratio should be 1:1

6) Dry running no more than 10s

7) Options on request

     Different cable length and plug

     Brass flow meter can be optional

     Different voltage and frequency

8) Warranty: 1 year (According to our general sales conditions)

Motor and Pump

Copper winding

Built-in thermal protector

Ceramic shaft
Ceramic bearing

PP impeller

Male tab connection to the cable

Supply brass connector for each unit

Options on request: Brass pump body

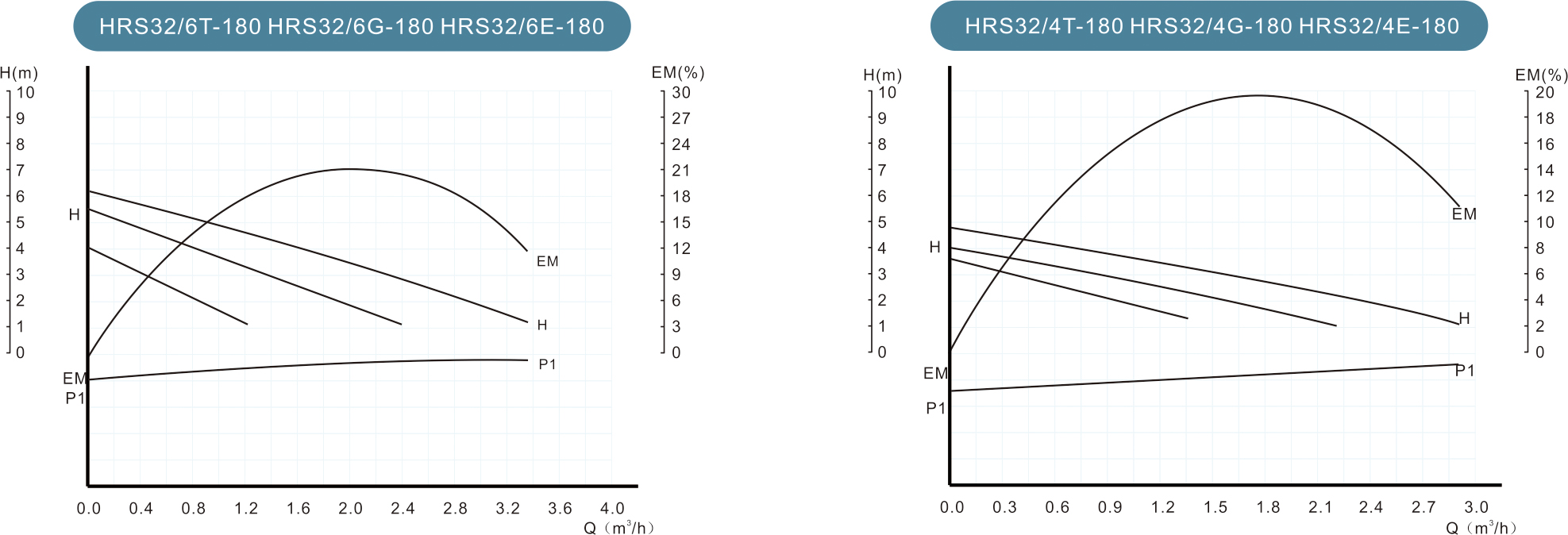

Performance Curve :

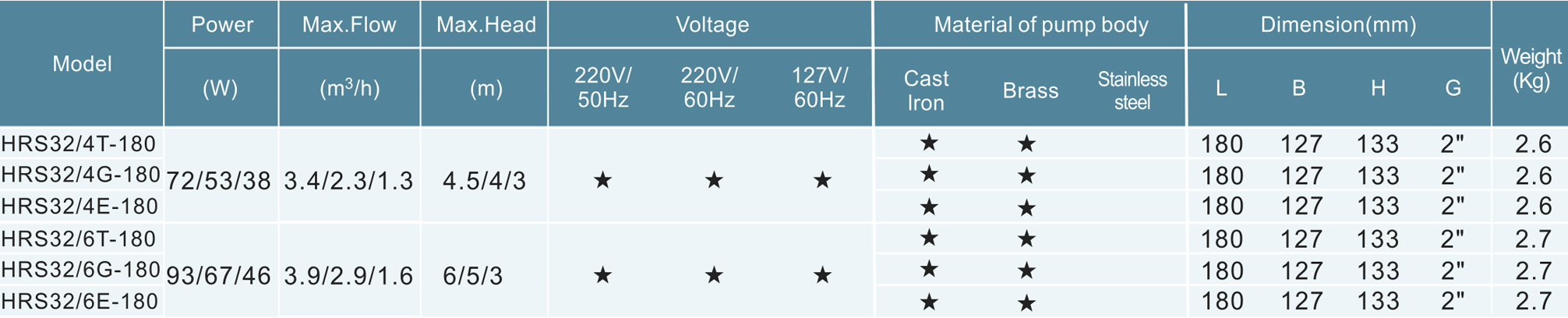

 Technical Data :

 Installation Dimension :
