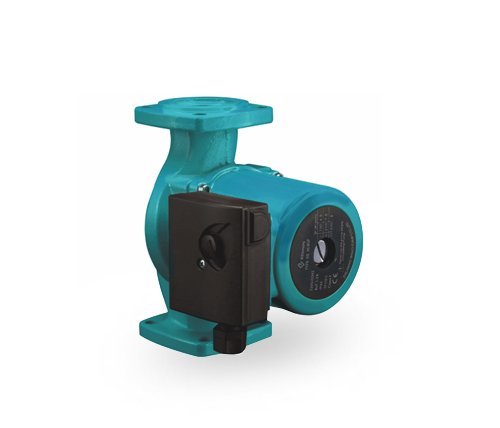

HRS40/8GF Series Ceramic Shaft Circulation Pump with Flange for Heating System

Product Description:

Introducing the HRS40/8GF Series, a high-performance ceramic shaft circulation pump designed for robust and reliable operation in heating systems. This pump is engineered to deliver exceptional performance with a flow rate of up to 40,000 m³/h and a head of up to 8 meters, making it ideal for a variety of heating applications.

Key Features:

1. Durable Ceramic Shaft: The HRS40/8GF Series boasts a ceramic shaft that offers unparalleled durability and resistance to wear, ensuring a long service life even in the most demanding conditions.

2. Flange Mounting: Equipped with a flange for easy installation, this pump can be seamlessly integrated into existing heating systems, simplifying maintenance and reducing downtime.

3. High-Temperature Tolerance: With the ability to handle temperatures ranging from -40°C to 180°C, the HRS40/8GF Series is suitable for a wide range of heating applications, including those with high-temperature demands.

4. Efficient Operation: The pump's PP (Polypropylene) impeller and ceramic bearings contribute to its high efficiency and low-noise operation, making it an environmentally friendly choice for heating systems.

5. Safety and Protection: The HRS40/8GF Series is equipped with a copper-wound motor and an integrated thermal protector, ensuring safe and reliable operation.

6. Customizable Options: Available with various cable lengths and plug options, as well as the option for a brass flow meter, this pump can be tailored to fit specific system requirements.

7. Global Compatibility: With the ability to provide pumps with different voltage and frequency options (50Hz or 60Hz), the HRS40/8GF Series is suitable for use in multiple countries and regions.

8. Warranty: Backed by a 1-year warranty, the HRS40/8GF Series offers peace of mind and confidence in the quality and reliability of your heating system's circulation pump.



Applications:

• Heating systems in residential and commercial buildings
• Industrial equipment cooling
• Solar water heating systems
• Boiler circulation systems



Technical Specifications:

• Flow Rate: Up to 40,000 m³/h
• Head: Up to 8 meters
• Pressure: Up to 10 bar
• Temperature Range: -40°C to 180°C
• Motor: Copper-wound with thermal protection
• Shaft Material: Ceramic
• Bearing Material: Ceramic
• Impeller Material: Polypropylene
• Connection: Flange mount
• Voltage and Frequency: Customizable (50Hz or 60Hz)

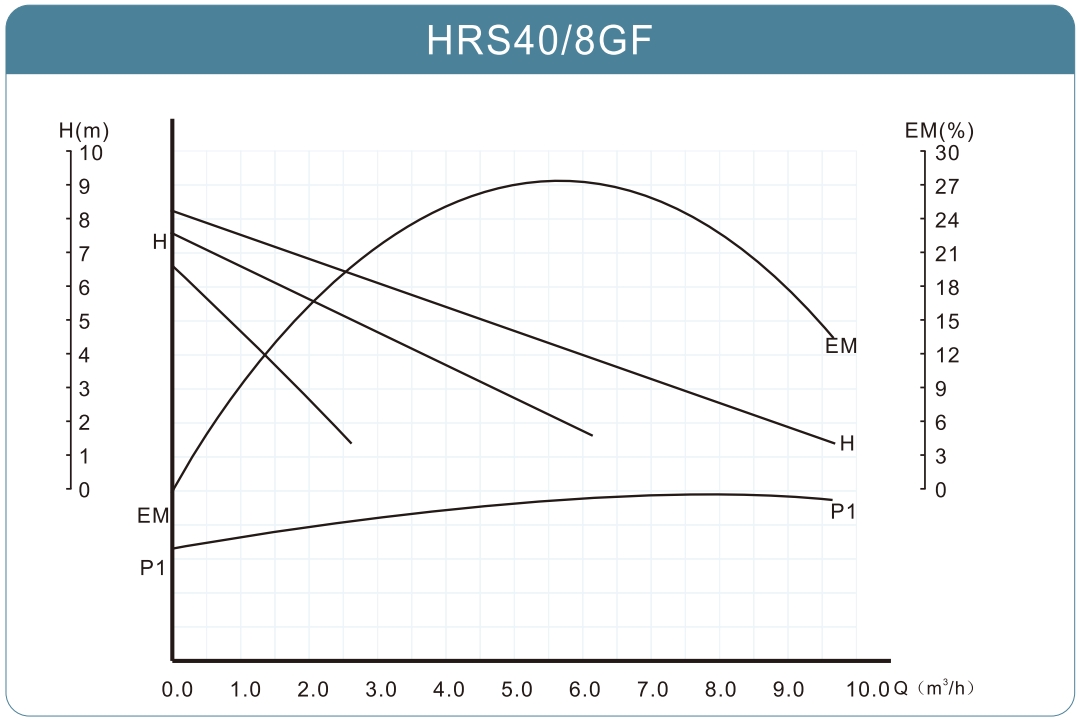

Performance Curves :

Performance Data :
