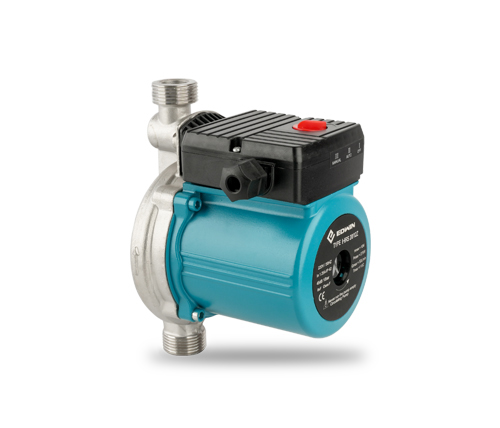

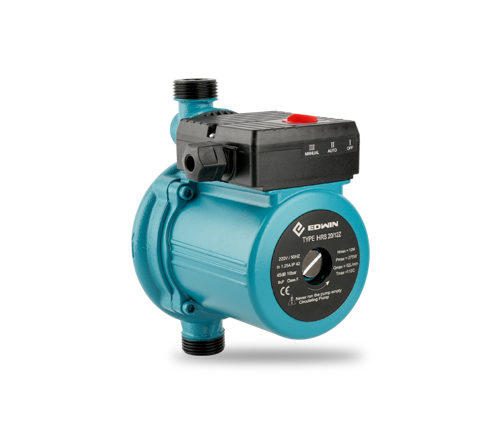

HRS20/12Z Series 1 Inch Copper Winding Water Booster Pump

Applications :

Low noise automatic booster pump, suitable for cold and hot water pressurization in small and medium-sized apartment, such as: water supply low pressure in roof tank, low pressure of solar water outlet, gas water heater won’t turn on, low tap water pressure etc.

Operating Conditions :

Ambient Temperature: 0℃~40℃

Ambient Humidity: 95%

Liquid Temperature: -10℃~110℃

Ambient temperature must be lower than liquid temperature, in order to avoid condensate water produced in the interior of stator

Liquid: Clean, non-corrosive and non-explosive liquids, without any particle, fiber or mineral oil.

Water/Glycol mixtures max. mixing ratio should be 1:1

Options on request :

Different cable length and plug

Brass flow meter can be optional

Different voltage and frequency

Warranty :

1 year (According to our general sales conditions)

Motor and Pump :

Copper winding

Built-in thermal protector

Ceramic shaft

Ceramic bearing

PP impeller

Male tab connection to the cable

Supply brass connector (1" to 3/4") for each unit

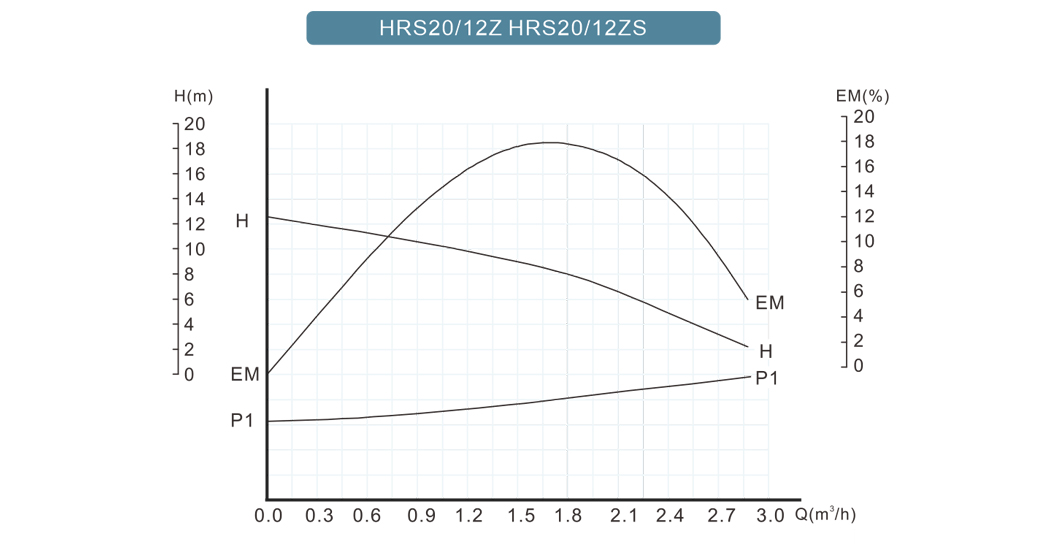

Performance Curves :

 Technical Data :

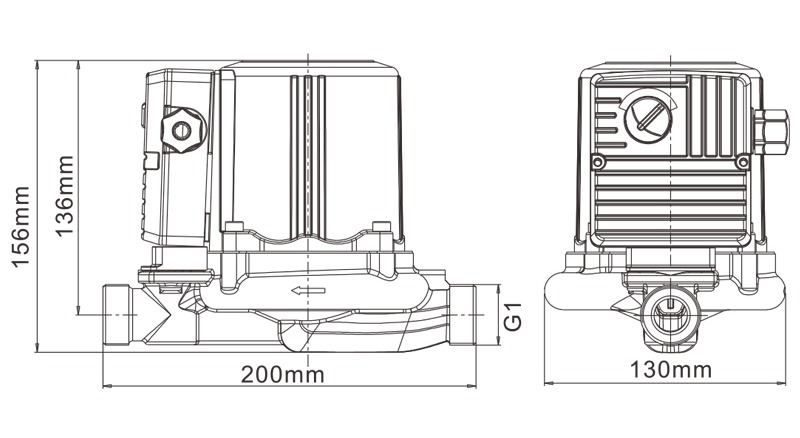

Installation Dimension :
