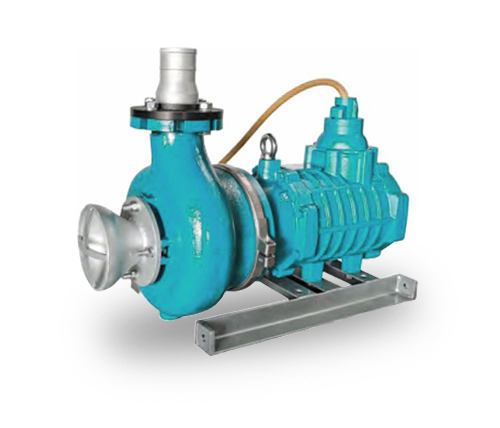

HVS Series 7.5kW High Wear-resistant Mechanical Seal Submersible Slurry Pump for Harsh Environment

Power : 5.5kW- 7.5kW
High Wear-resistant Mechanical Seal
Submersible Slurry Pump
for Harsh Environment

Get password

Description :

HVS submersible slurry pump is specially designed for harsh environment, sites pumping containing slit and otherabrasive material. Every component of it fully reflects the high durability, reliability and ease of serviceability.HVS submersible slurry pump is adopted with H Class motor, high wear-resistant mechanical seal, high wear-resistantalloy impeller,high wear-resistant alloy pump body,high wear-resistant PU Inlet plate .Vortex impeller allows the big solids passage

Application :

Mining industry : Coal, gold, platinum, diamod mining and process exceptional handing of solids and slurry
Sewage and Wastewater transportation : Capable of reliably transporting raw sewage.
Power generation industry : Effective handling of fly ash, coal, and dewatering requirements.
Construction industry : Drainage of construction silt water, underwater sand extraction, clean up the sedimentaion tank.
Chemical industries : Particularly in applications involving cbrasive raw materials

Performance Range :

Capacity : up to 115m/h
Head : up to 17m
Density of liquid : 1.3g/cm3Power: 5.5kW(7.5HP) to 7.5kW(10HP)
Power supply : three phase 380V 10%, 50Hz ; three phase 380V 10%, 60Hz
Insulation class : H
Protection class : IP68
Cable length : 10m
Water temperature : up to 60C
PH : 6 to 10
Maximum immersion depth : 15m

Option on request :

Other voltages and the length of cable is optional .

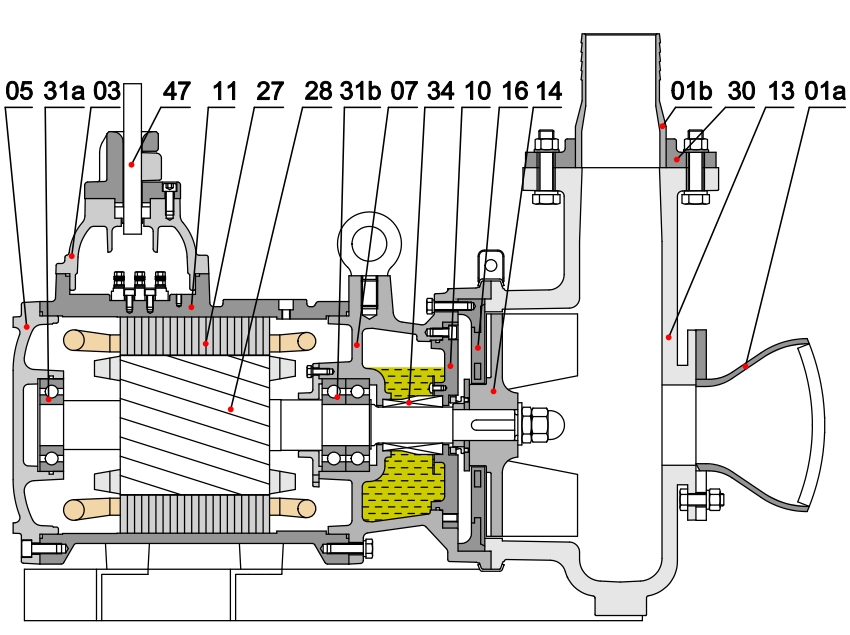

Components :

Materials Table
NO.	Name	Material
01a	Water inlet	Steel
01b	Hose coupling	steel
03	Terminal box	Cast iron
05	Upper cover	Cast iron
07	Bearing house	Cast iron
10	Seal bracket	Cast iron
11	Motor body	Cast iron
13	Pump body	High chrome alloy
14	Impeller	High chrome alloy
16	Inlet plate	Cast iron and PU
27	Stator
28	Rotor	Shaft : AISI420SS
30	Flange	Cast iron
31a	Bearing	Ball bearing
31b	Bearing	Ball bearing
34	Mechanical seal	Sic-Sic / Sic-Sic
47	Cable
