HRS-EAY Intelligent Circulation Pump Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • HRS-EAY Intelligent Circulation Pump
Intelligent Circulation Pump

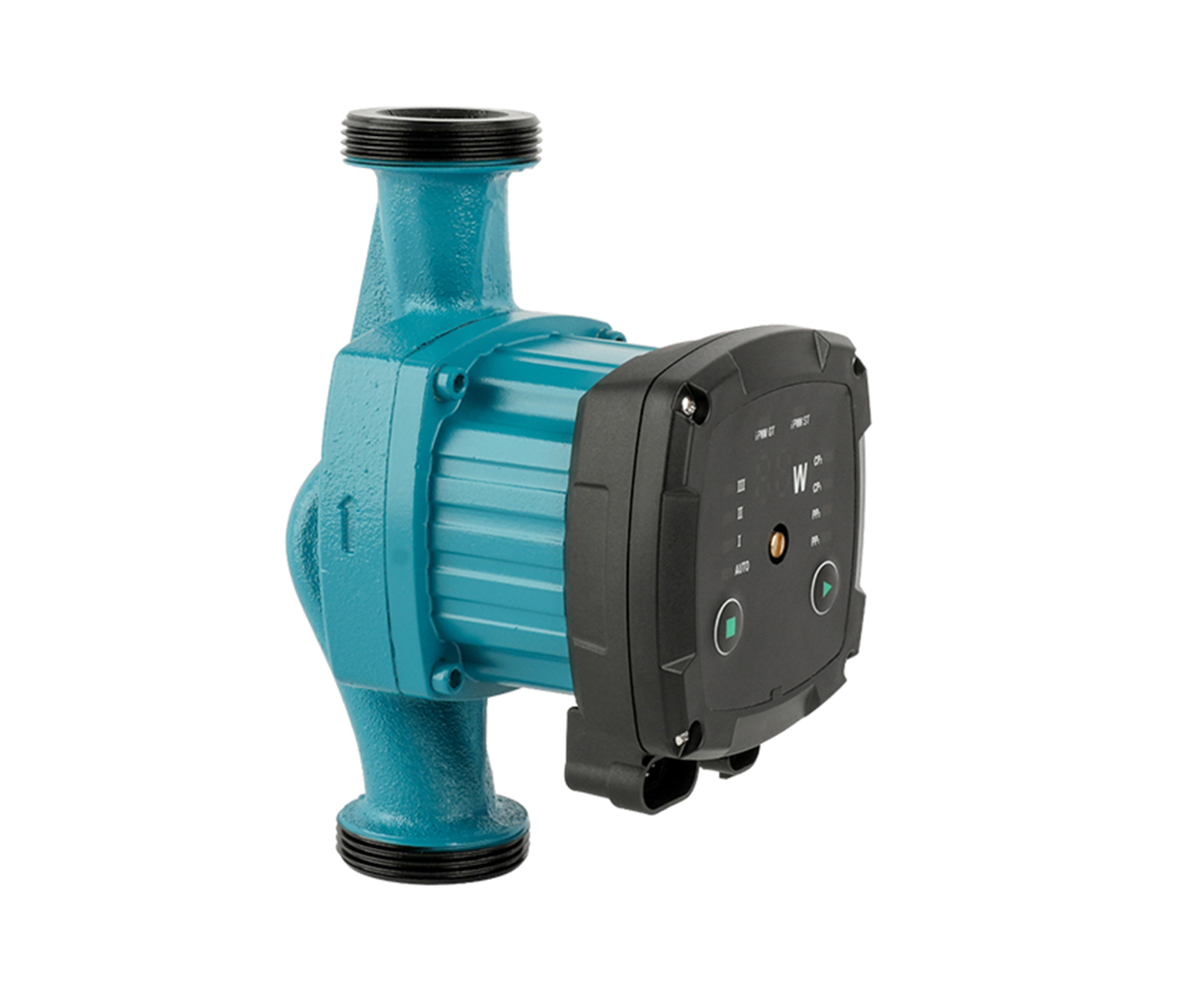

HRS-EAY Intelligent Circulation Pump

Model: HRS-EAY

Max. Head: 4M/5M/6M/7M

Outlet: G 1 1/2"

Pulse Width Modulation



Get A Quote
Download
×
Get password
submit
PREV：HRS-EAC Quiet Variable Frequency Adaptive Intelligent Shield Circulation PumpNEXT：HRS-EA-DN Intelligent Circulation Pump
Part Material
Pump  body Cast iron
Impeller PES
Stainless steel cover 304SS
Bearing Ceramic
Gasket Rubber
Brass bearing Brass
Rator SS&Copper
Ceramic shafting Ceramic
Shielding 304SS
Stator Silicon steel&Copper
Motor housing Aluminum
Hexagon socket screws Stainless steel
Exhaust  screw Brass
Nameplate Nylon
Seat of terminal box Nylon
Cover of termial box Nylon

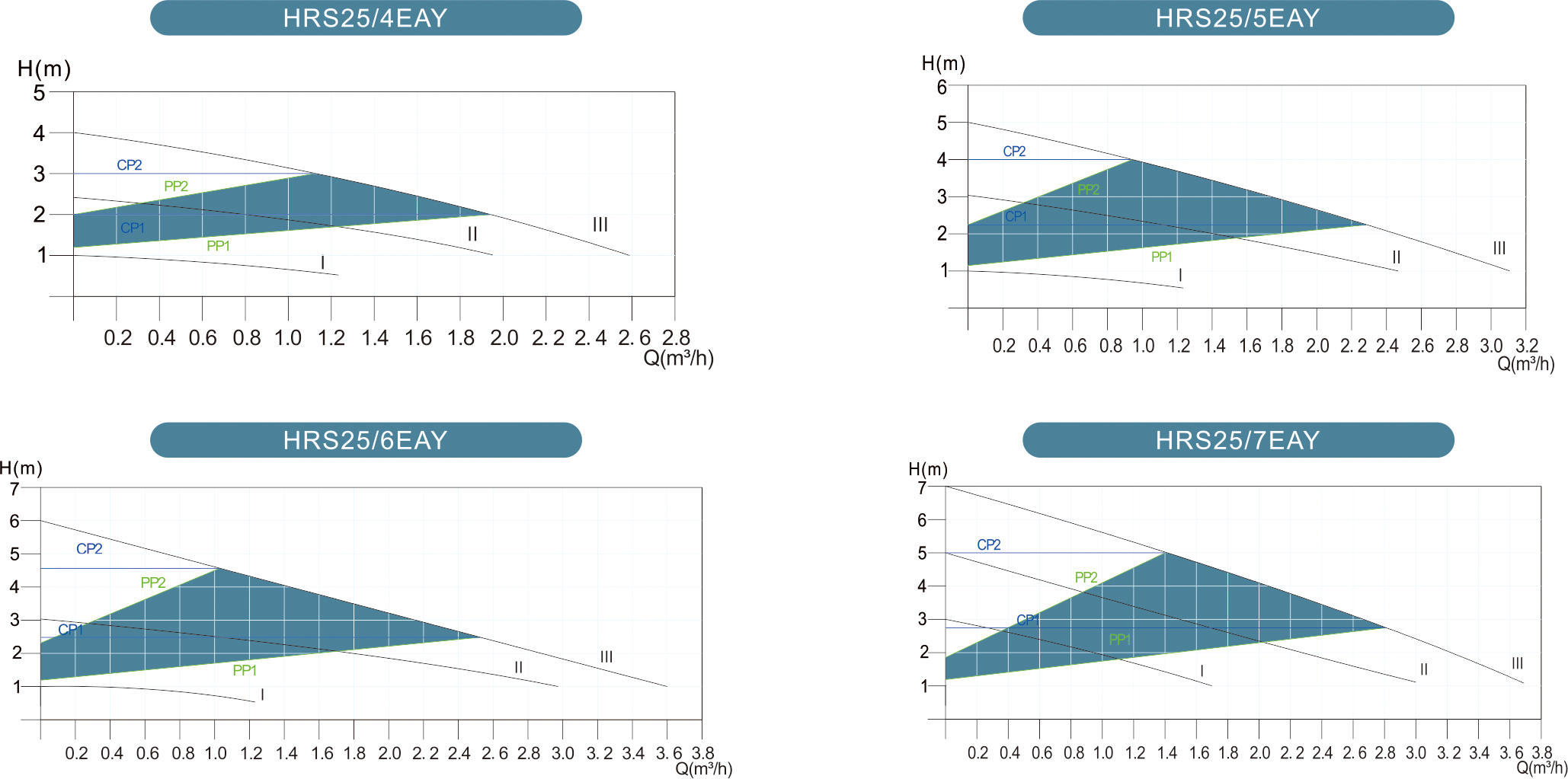

Model Power Max. Flow Max.Head Voltage/Frequency Body Length G
(W) (m3/h) (m) (V/Hz) 130 180
HRS25/4EAY 5~22 2.6 4 220/50 ★ ★ 1 1/2"
HRS25/5EAY 5~32 3.1 5 220/50 ★ ★ 1 1/2"
HRS25/6EAY 5~45 3.6 6 220/50 ★ ★ 1 1/2"
HRS25/7EAY 5~52 3.7 7 220/50 ★ ★ 1 1/2"
