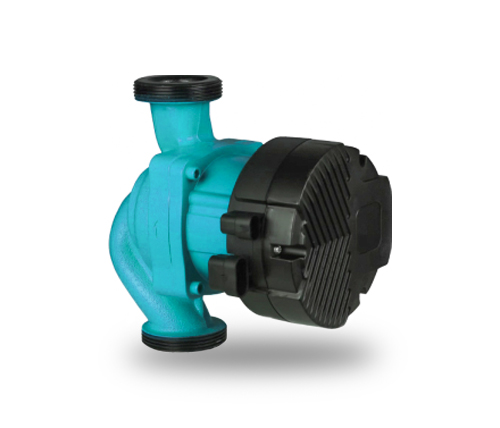

Intelligent Circulation Pump

EAW Series BMC Craft Motor Touching Bottons Intelligent Shield Circulation Pump

BMC Craft Motor
Touching Bottons
Intelligent Shield Circulation Pump

Get A Quote

Download

Get password

PREV：JPA-R PWM Signal Wall-hung Boiler High Efficiency Intelligent Circulation Pump NEXT：HRS-EAQ Series High Effiiciency Cast Iron Body Intelligent Circulation Pump

Description
Components
Curves
Performance Data

Main Features：

1 . Motor with BMC craft.
2 . PCB be potted with Polyurethane
3 . The pump body is made of stainless steel precision casting
4 . Touching buttons
5 . loT (The Internet of Things) connection
6 . Shielding pump, variable frequency adaptive, quiet and efficient
7 . 1 year warranty .

Applications :

1. Air conditioning , refrigeration secondary system
2. Combined heating and circulation

Materials :

1. Pump body : cast iron

2. Impeller : PES

3. Bearing : Ceramic

4. Shaft : Ceramic

5 . Motor : International class H high temperature copper wire

Technical Data :

Model	Power	Max. Head	Max. Flow
	(W)	(m)	(m³/h)
RS25/8EA-W	80	8	4
RS25/10EA-W	180	8	8.5
RS25/12EA-W	220	12	9.2
RS25/15EA-W	290	15	10
RS25/18EA-W	370	18	10.5
RS32/10EA-W	180	8	8.5
RS32/12EA-W	220	12	9.2
RS32/15EA-W	290	15	10.
RS32/18EA-W	370	18	10.5
