Self-priming JET Pump

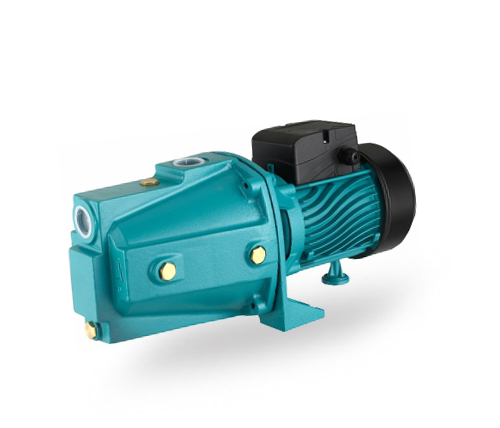

JET-SL Series High Pressure Horizontal Self-priming JET Pump for Garden Use

  High Pressure
C&U Bearing
Self-priming JET Pump
pump for Garden Use
Get A Quote
Download
×
Get password
submit

Description :

With its exceptional performance and innovative features,JET-SL Series High Pressure Horizontal Self-priming JET Pump for Garden Use is the perfect choice for both residential and commercial applications.This unique design allows the pump to handle various types of liquids, making it versatile and adaptable to different pumping requirements.Whether you need to pump water from a well, pool, or garden, this pump is up to the task.

Key Features :

1、High pressure : Its high-pressure capabilities make it ideal for irrigation systems, ensuring that your plants receive the necessary water supply for optimal growth
2、Its self-priming feature eliminates the need for manual priming, saving you time and effort.
3、Whether you need to pump water from a well, pool, especially from garden, this pump is up to the task.
4、 It is equipped with various safety features, including overload protection and a thermal cut-off switch, which automatically shuts off the pump in case of overheating.
5、 1 year warranty (According to our general sales conditions) .

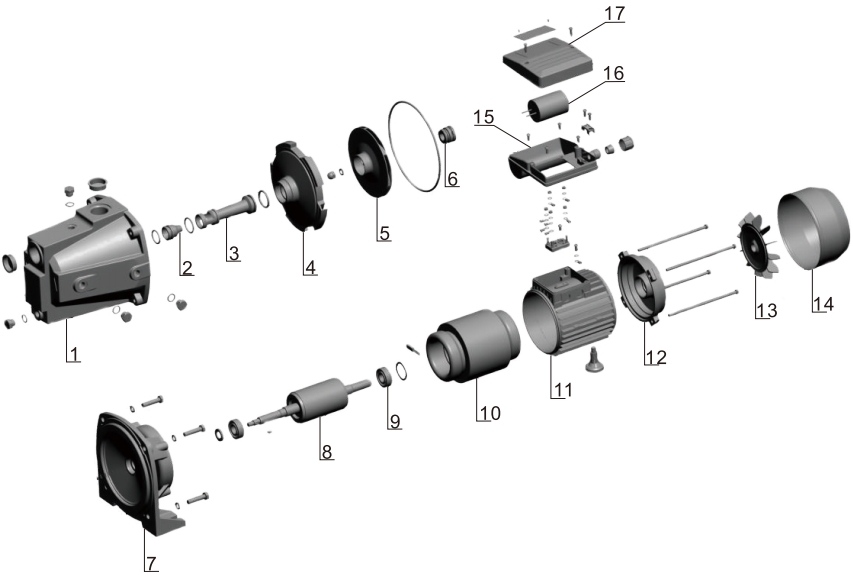

Components :

Materials Table

NO.

Part

Material

1

Pump Body

HT200

2

Nozzle

PPO

3

Venturi

PPO

4

Diffuser

PPO

5

Mechanical Seal

Carbon/Ceramic

6

Impeller

Brass

7

Support

HT200

8

Shaft And Rotor



9

Stator



10

Motor Case

Aluminum

11

Motor Cover

Cast iron

12

Fan

PP

13

Fan Cover



14

Capacitor Holding Box



15

Capacitor



16

Terminal Cover



17

Ball Bearing

Technical  Data :


Model Power Inlet x Outlet Max. Flow Max. Head Max. Suction
KW HP (L/min) (m) (m)
JET-550SL 0.60 0.8 1"x1" 40 40 8
JET-750SL 0.75 1.0 1"x1" 45 45 8
JET-1100SL 1.10 1.5 1"x1" 50 50 8
