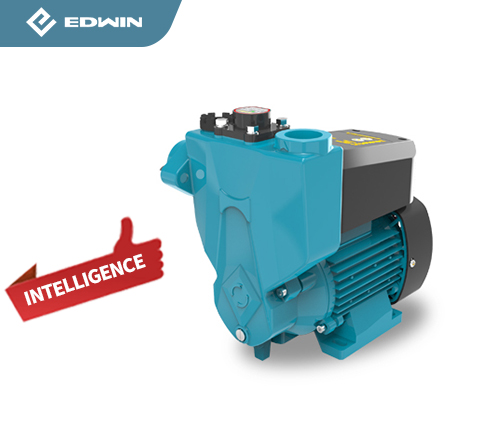

ITWZB-C Series Corrosion and Rust Resistant Adaptive Intelligent Self-priming Pump

Description :

The "ITWZB-C Series Corrosion and Rust Resistant Adaptive Intelligent Self-priming Pump" appears to be a specialized pump designed to handle corrosive and rust-prone environments while offering intelligent and self-priming features. Here's an overview of its key attributes :
1. Corrosion and Rust Resistant: The pump is specifically engineered to withstand corrosive environments and resist rust formation. This feature is crucial for applications where the pump comes into contact with aggressive or corrosive fluids, such as seawater, chemicals, or wastewater.
2.Adaptive: The pump incorporates adaptive technology, suggesting that it can adjust its operation based on varying conditions or demands. This adaptability may include features like variable speed control, automated pressure adjustments, or self-diagnostic capabilities to optimize performance and efficiency.
3.Intelligent: The pump is equipped with intelligent control features, which may include built-in sensors, microprocessors, or communication interfaces to monitor and manage various parameters such as pressure, temperature, and flow rate. Intelligent pumps can optimize performance, diagnose issues, and communicate with external systems for enhanced functionality and efficiency.
4.Widely application : Rural water supply and garden irrigation.HVAC and circulation&pressure boosting of hot&cold water.Long-distance water transfer and supporting equipment.Transfer clean water or non-corrosive liquid without solidparticles and fibers.
5.1 year warranty.

Function :

1, Adaptive functionalityAutonomously recognize pipeline pressureProvisional adjustment of initial pressure level
2, Dual control mechanism (pressure & flow switch)Perform intuitive pressure manoeuvring for pumps conducting 0-100m hydraulic head operations
3, Water scarcity safeguard
4, Initiation upon resumption of tap water supply
5, Multiple critical start and cease protection
6, Thermal safety mechanism
7, Optional timing feature
8, Electrophoretic resistance to corrosion and rust
9, Ready-to-use design
10, Intelligent learning and retention capability

Motor :

Maximum liquid temperature: +100°C
Maximum ambient temperature: +40°C
Insulation: Class F
Ingress protection: IP44
Operating duty cycle: s1
Input voltage: Single phase, 220V, 50/60Hz
(Alternative input voltages are customizable)

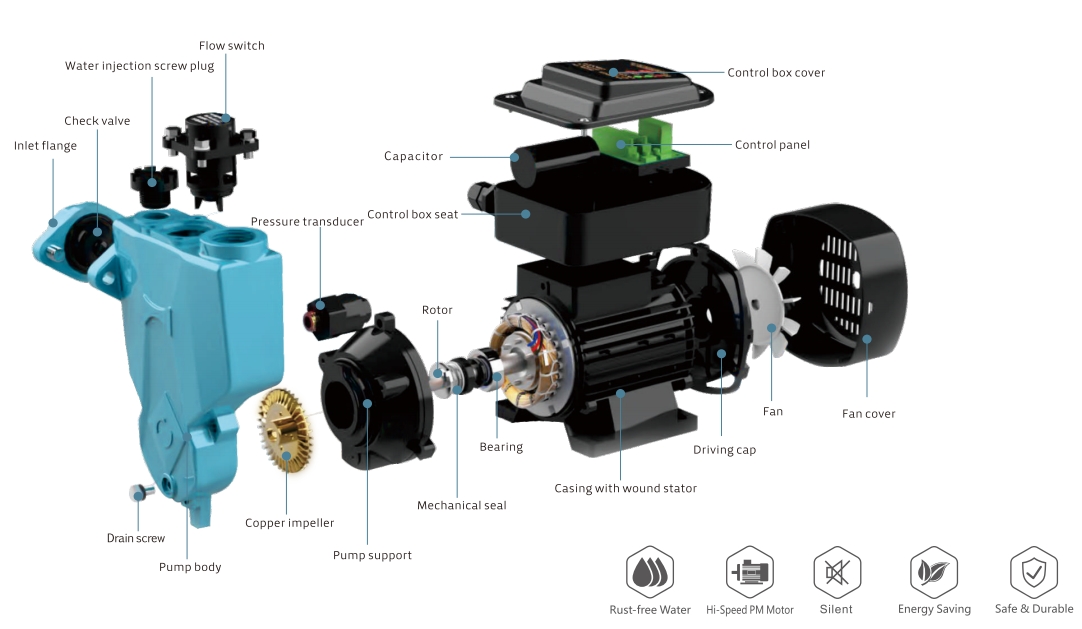

Product Explosion Chart :

Components	Construction
Pump body	Cast iron , 304stainless steel inserts
Pump support	Cast iron , 304stainless steel inserts
Motor housing	Aluminum
impeller	Copper
Mechanical Seal	Silicon carbide
Bearing	6201(200W-400W)  6202(600W-800W)

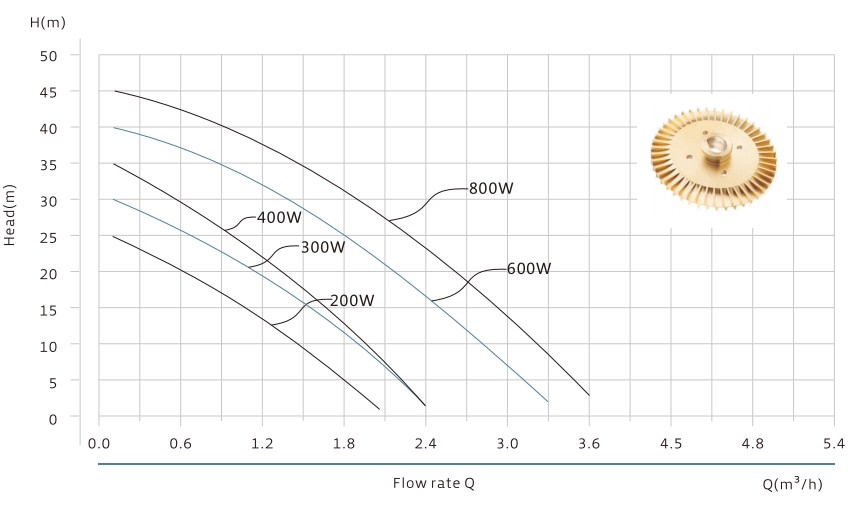

Performance Chart :

Technical Data ：
