Sewage Submersible Pump

WQ4B Series 55KW~90KW 4P 45-55KW 6P Strong Emission Professional Sewage Pump

Rated Voltage : 380V

Motor power : 55KW~90KW / 45-55KW

Pole number : 4P/6P
Strong Emission

Professional Sewage Pump

Get A Quote

Get password

Specification :

Insulation class : F

Protection class : IP68

Starting method : reduced-voltage starting

Water temperature : up to 40^oC

PH: 6 to 10

Density of liquid : 1.3g/cm³

Power supply : three phase 380V ±10%, 50Hz Capacity : up to 1900 m³/h

Head : up to 66m

Maximum immersion depth : 20m

Cable Length : 10m

Options on request : suitable voltages , the length of cable and oil water leakage probe

Warranty : 1 year

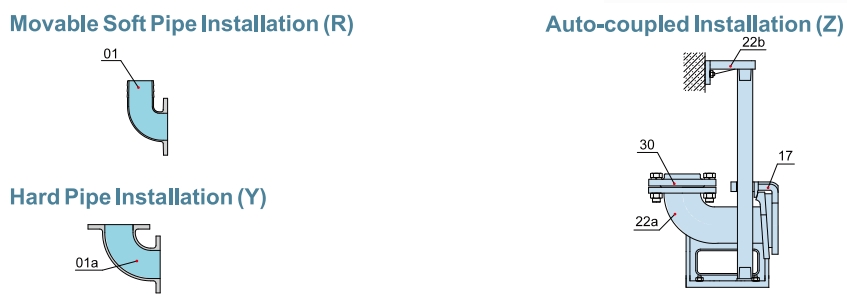

Components :

Materials Table
NO.	Name	Material
01	Hose coupling	Cast iron
01a	Hose coupling	Cast iron
03	Terminal box	Cast iron
04	Wiring terminal
05	Upper cover	Cast iron
06	Up-Bearing house	Cast iron
07	Bearing house	Cast iron
10	Seal Bracket	Cast iron
11	Motor body	Cast iron
13	Pump body	Cast iron
14	Impeller	Ductile iron
16	Inlet plate	Cast iron
17	Coupling adapter	Cast iron
22	Seat assembly	Cast iron
22a	Coupling seat	Cast iron
22b	Upper guide support	Cast iron
24	Neck ring	High chrome alloy
27	Stator
28	Rotor	Shaft : AISI420SS
30	Flange	Cast iron
31a	Bearing	Ball bearing
31b	Bearing	Angular contact bearing
34	Mechanical seal	Sic-Sic / Sic-Sic
35	Oil seal
47	Cable
S1/2	Overheat protector : on option
S3/4	Oil water leakage probe : on option
S5/6	Float switch : on option
