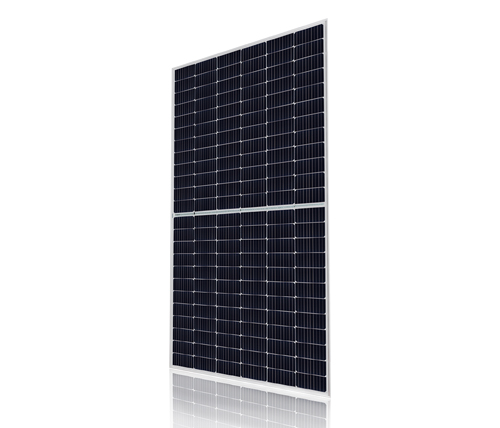

The 560W to 580W Mono-crystalline Bifacial 72Cell Hal-cut Solar Panel ensures maximum energy conversion and efficiency. This means that even on cloudy days, the Solar Pump will continue to operate at peak performance, providing a consistent and reliable water supply for your crops.
1、MBB Half-Cut Solar Cell : 144 cells (6X24).
2、Higher Panel Conversion Efficiency : Higher solar output up to 580W with solar efficiency up to 22.45%
3、Low-light Performance : Advanced glass and surface texturing allow for excellent performance in low-light environments.
4、Light-weight design : Light-weight design using transparent backsheet for easy installation and low BOS cost.
5、Higher Power Output : Panel power increases 5-25% generally, bringing significantly lower LCOE and higher IRR
|
Front cover (material /thickness) |
low-iron tempered glass /3.2mm |
|
Backsheet (color) |
transparent |
|
Cell (quantity / material / dimensions) |
144(6x24)/monocrystalline silicon.bifacial |
|
Frame (material/color) |
aluminum hollow-chamber frame on each side anodized aluminum alloy / silver |
|
Junction box (protection degree) |
≥lP68 |
|
Cables & Plug connectors |
4㎟ , 300mm in length , length can be customized |
|
Panel Dimensions ( L / W / H ) |
2278x1134x30 / 35mm |
|
Panel Weight |
26.6kg / 27kg |
|
Application class |
Class A |
|
Electrical protection class |
Class ll |
|
Fire safety class |
Class C |
|
Container Size |
Units/pallet(PSC) |
Weight/Pallet (KG) |
Pallet Measurment (mm) |
Units/Container (PCS) |
|
40HQ |
36(30mm) |
858 |
2285x1130x1260 |
720 |
|
31 (35mm) |
858 |
2285x1130x1260 |
620 |
BIFACIAL, 182mm , 72-CELL HALF-CUT SERIES
|
Panel type : ESM72MHB |
560M |
565M |
570M |
575M |
580M |
|
Maximum Power (Wp) |
560W |
565W |
570W |
575W |
580W |
|
Open circuit Voltage (Voc) |
50.30V |
50.45V |
50.60V |
50.75V |
50.90V |
|
Short circuit Current (lsc) |
13.97A |
14.04A |
14.11A |
14.18A |
14.25A |
|
Maximum Power Voltage (Vm) |
41.92V |
42.07V |
42.22V |
42.37V |
42.52V |
|
Maximum Power Current (lm) |
13.36A |
13.43A |
13.50A |
13.57A |
13.64A |
|
Panel efficiency |
21.67% |
21.87% |
22.06% |
22.25% |
22.45% |
|
Maximum Series Fuse |
25A |
||||
|
Watts positive tolerance |
0~+3% |
||||
|
Number of Diode |
3 |
||||
|
Standard Test Conditions |
1000W/㎡,25°C，AM1.5 |
||||
|
Maximum System Voltage |
1500V/DC |
||||
|
Temperature-Coefficient Isc |
+0.043%/℃ |
||||
|
Temperature-Coefficient Voc |
-0.24%/℃ |
||||
|
Temperature-Coefficient Pmpp |
-0.30%/℃ |
||||
|
Operating Temperature |
-40℃….+85℃ |
||||
|
Normal Operating Cell Temperature |
45±2℃ |
||||
|
Load Capacity for the cover of the panel (glass) |
5400Pa(IEC61215)(snow) |
||||
|
Load Capacity for the front & back of the panel |
2400Pa(IEC61215)(wind) |
||||
|
Panel type : ESM72MHB |
560M |
565M |
570M |
575M |
580M |
|
Maximum Power (Wp) |
421W |
425W |
429W |
433W |
437W |
|
Open circuit Voltage (Voc) |
47.78V |
47.91V |
48.04V |
48.17V |
48.28V |
|
Short circuit Current (lsc) |
11.28A |
11.35A |
11.42A |
11.48A |
11.55A |
|
Maximum Power Voltage (Vm) |
39.45V |
39.58V |
39.71V |
39.84V |
39.95V |
|
Maximum Power Current (lm) |
10.67A |
10.74A |
10.81A |
10.87A |
10.94A |
