2.5SDM1.5 Series Stainless Steel Deep Well Pump with Control Box

Minimum well diameter : 2.5"

Max. capacity : 2.7m³/h
Impeller : POM

Shaft : AISI304SS

Pump with Control Box

Get password

Description :

Introducing the 2.5SDM1.5 series, a robust and reliable stainless steel deep well pump designed for a variety of applications, from home and garden use to industrial and agricultural needs. This multistage submersible pump is engineered for performance and durability, ensuring efficient water extraction from deep wells.

Applications :

-For water supply from wells or reservoirs

-For domestic use,for civil and industrial applications

-For garden use and irrigation

Motor and Pump :

-Equip with start control box or digital auto-control box

-Pumps are designed by casing stressed

-Curve tolerance according to lS09903

Options on request :

1、Special mechanical seal
2、Other voltages or frequency 60Hz
3、Single-phase motor equipped with an integrated capacitor.

CE Certificate :

Product Line :

Components and Materials :

Components	Material
Pump external casing	AISI 304 SS
Delivery casing	Cast-Cu ASTM C85500
Suction lantern	Cast-Cu ASTM C85500
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	AISI 304 SS
Oil Chamber	®Cast-Cu ASTM C85500
Oil Chamber	②Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(Graphite-Ceramic/TC)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

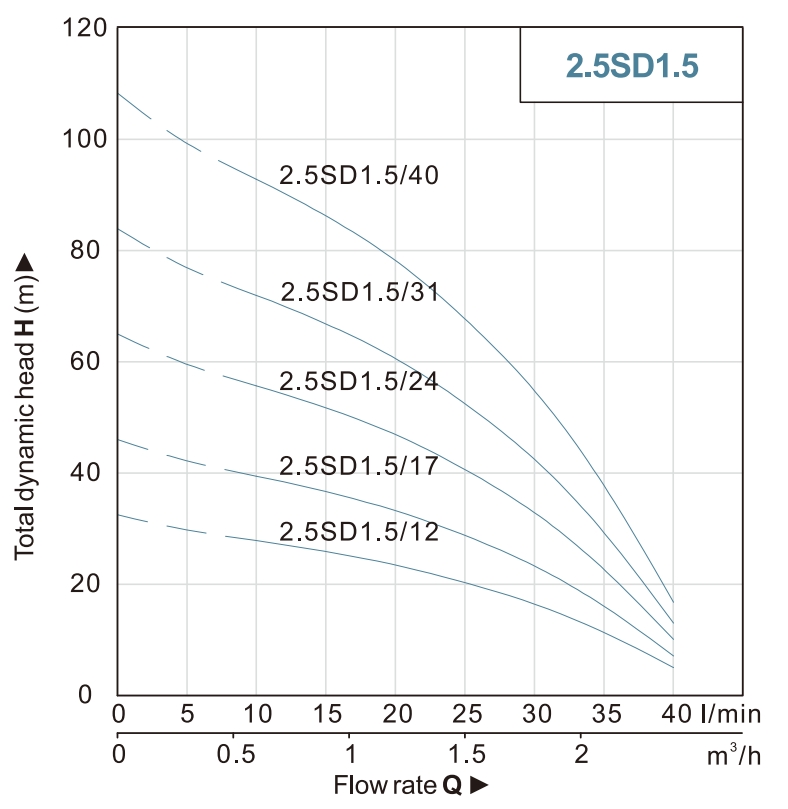

Performance Curves :

Performance Data ( 50Hz ) :

Model	Power		Deliver
1~220V-240V	KW	HP	Q(m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
1~220V-240V	KW	HP	Q(l/min)	0	5	10	15	20	25	30	35	40	45
2.5SDM1.5/12	0.18	0.25	H(m)	33	30	28	26	23	20	17	11	5	-
2.5SDM1.5/17	0.25	0.33		46	42	39	37	33	29	24	16	7	-
2.5SDM1.5/24	0.37	0.5		65	60	56	52	46	40	33	22	10	-
2.5SDM1.5/31	0.55	0.75		84	77	72	67	60	52	43	29	13	-
2.5SDM1.5/40	0.75	1		108	99	93	87	77	67	55	37	17	-
