3SDM6 0.33HP to 2HP Submersible Manual Deep Well Water Pump

Minimum well diameter : 3"
Power : 0.25KW/0.33HP-1.5KW/2HP
Max Head : 79m
Rated  capacity  : 6m³/h
Get A Quote
Download
×
Get password
submit
PREV：2.5SDM1.5 Series Stainless Steel Deep Well Pump with Control Box NEXT：3.5SDM4 Series Submersible Deep Well Water Pump

Description :

Introducing the 3SDM6 series, a robust and reliable submersible deep well water pump designed for a variety of applications, from domestic water supply to industrial and agricultural use. This manual deep well water pump is engineered to deliver optimal performance and longevity, ensuring a consistent water supply in various conditions.

Applications :

Ideal for water supply from wells or reservoirs.

Suitable for domestic use, civil and industrial applications.

Perfect for garden use and irrigation.

Pump Conditions :

Maximum fluid temperature up to +35ºC.

Maximum sand content: 0.25%.

Maximum immersion: 80m.

Minimum well diameter: 3".

CE Certificate :



Product Line :


Components and Materials :

Materials Table

NO.

Part

Material

1

Pump external casing

AISI 304 SS

2

Delivery casing
  1. Cast-Cu ASTM C85500
  2. AISI 304 SS
  3. Cast-iron

3

Suction lantern
  1. Cast-Cu ASTM C85500
  2. AISI 304 SS
  3. Cast-iron

4

Diffuser
  1. Plastic.PC
  2. Plastic.ABS

5

Impeller

Plastic.POM

6

 Pump shaft

AISI 304 SS

7

Shaft coupling

AISI 304 SS

8

Wear ring

AISI 304 SS

9

Motor external casing

AISI 304 SS

10

Oil chamber

Cast-Cu ASTM C8550

Cast-iron ASTM NO.30

11

Bottom support

AISI 304 SS

12

Mechanical Seal

Special seal for deep well (Graphite-Ceramic/TC)

13

Seal lubricant oil

Oil for food machinery and pharmaceutic use

14

Motor shaft

AISI 304 SS-ASTM 5140

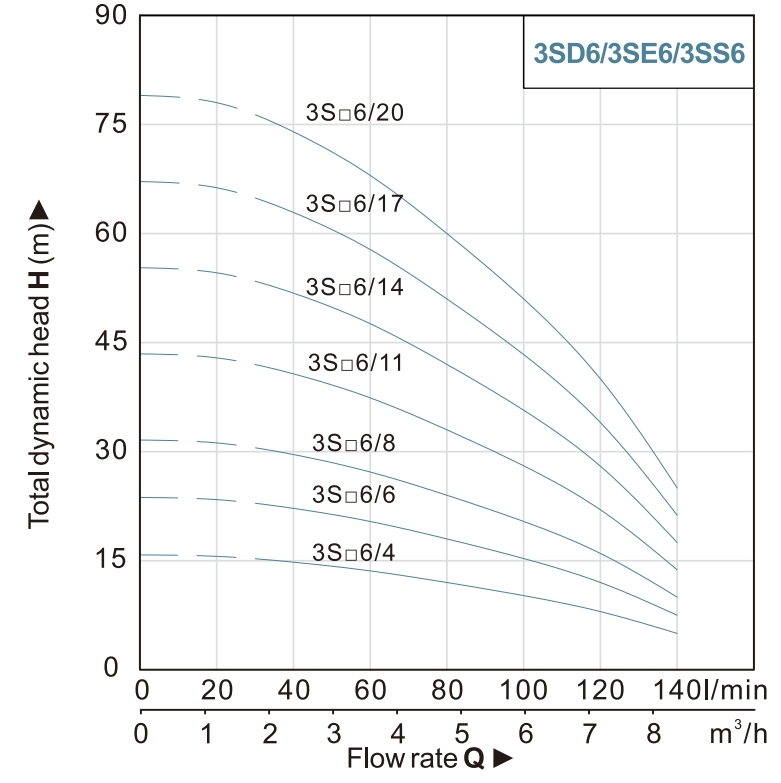

Performance Curves :





Technical Data ( 50Hz ) :

Model

Power

Deliver

1~220-240V

3~380-415V

KW

HP

Q(m³/h)

0

1.2

2.4

3.6

4.8

6.0

7.2

8.4

Q(l/min)

0

20

40

60

80

100

120

140

3SDM6/4

3SD6/4

0.25

0.33

H(m)

16

16

15

14

12

10

8

5

3SDM6/6

3SD6/6

0.37

0.5

24

23

22

20

18

15

12

8

3SDM6/8

3SD6/8

0.55

0.75

32

31

30

27

24

20

16

10

3SDM6/11

3SD6/11

0.75

1

43

43

41

37

33

28

22

14

3SDM6/14

3SD6/14

0.92

1.25

55

55

52

48

42

36

28

18

3SDM6/17

3SD6/17

1.1

1.5

67

66

63

58

51

43

34

21

3SDM6/20

3SD6/20

1.5

2

79

78

74

68

60

51

40

25
