CF Series Carbon Steel Horizontal Pressure Tank for Water System Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • CF Series Carbon Steel Horizontal Pressure Tank for Water System
Carbon Steel Pressure Tank

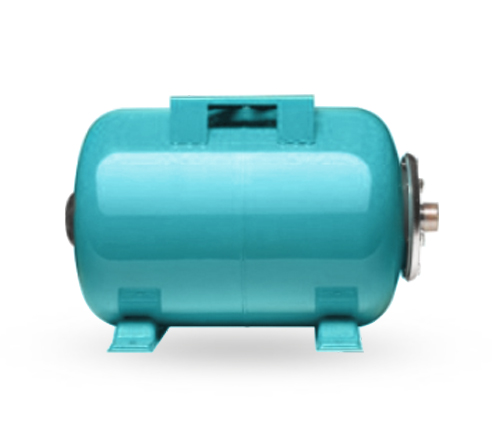

CF Series Carbon Steel Horizontal Pressure Tank for Water System

Carbon steel flange
Working temperature: -10°C~99°C (Butyl)
-10°C~99°C (EPDM)
0°C~77°C (Nature rubber)
Get A Quote
Download
×
Get password
submit
PREV：VT Series 3L to 50L Vertical Carbon Steel Pressure Tank with FlangeNEXT：TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank

Specification :
Replaceable membrane pressure tanks carbon steel
Working temperature: -10°C~99°C (Butyl)
-10°C~99°C (EPDM)
0°C~77°C (Nature rubber)



Technical Data :

Model

Max. pressure

Length

Height

Precharge Pressure

Connector

Packing

bar

mm

mm

bar

CBM

CF19L

6; 8; 10; 16

395

 292 1.8-2.0

1"

 0.0356

CF24L

6; 8; 10; 16

460

 292 1.8-2.0

1"

 0.0399

CF36L

6; 8; 10

435

 375 1.8-2.0

1"

 0.0588

CF50L

6; 8; 10

545

 375 1.8-2.0

1"

 0.0752

CF60L

6; 8; 10; 16

645

 408 1.8-2.0

1"

 0.1082

CF80L

6; 8; 10; 16

600

 470 1.8-2.0

1"

 0.1325

CF100L

6; 8; 10; 16

685

 470 1.8-2.0

1"

 0.1524
