Taizhou Haipai Import & Export Co., Ltd.
Home / Products / Pump Accessory / Carbon Steel Pressure Tank / TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank

TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank
  • TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank
Carbon Steel Pressure Tank

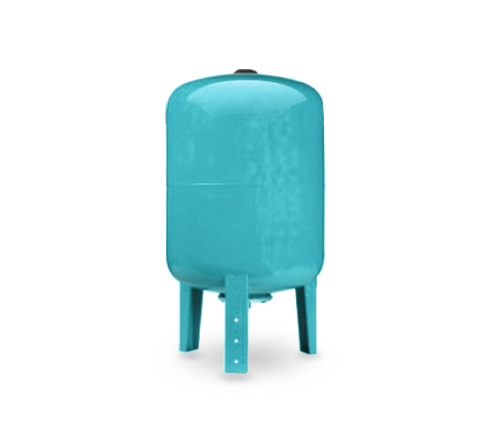

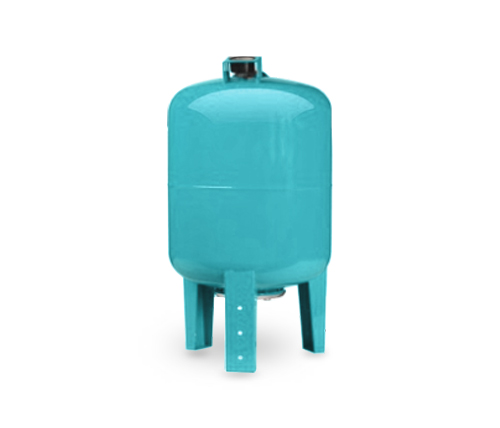

TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank

Carbon steel flange
Working temperature: -10°C~99°C (Butyl)
-10°C~99°C (EPDM)
0°C~77°C (Nature rubber)
Get A Quote
Download
×
Get password
submit
PREV：CF Series Carbon Steel Horizontal Pressure Tank for Water SystemNEXT：WVT Series 6Bar to 16Bar Carbon Steel Vertical Tank

Specification :
Replaceable membrane pressure tanks
Carbon steel flange
Working temperature: -10°C~99°C (Butyl)
-10°C~99°C (EPDM)
0°C~77°C (Nature rubber)



Technical Data :

Model

Max. pressure

Diameter

Height

Precharge Pressure

Connector

Packing

bar

mm

mm

bar

CBM

TVT36L

6; 8; 10

350

600

 1.8-2.0

1"

 0.0723

TVT50L

6; 8; 10

350

 710 1.8-2.0

1"

 0.0868

TVT60L

6; 8; 10; 16

380

 800 1.8-2.0

1"

 0.1316

TVT80L

6; 8; 10; 16

450

 750 1.8-2.0

1"

 0.1539

TVT100L

6; 8; 10; 16

450

 835 1.8-2.0

1"

 0.1701
