WVT Series 6Bar to 16Bar Carbon Steel Vertical Tank Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • WVT Series 6Bar to 16Bar Carbon Steel Vertical Tank
Carbon Steel Pressure Tank

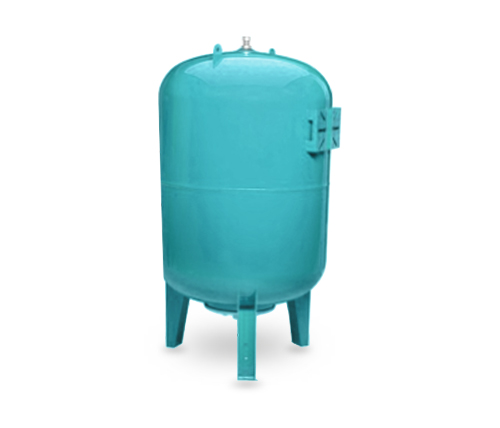

WVT Series 6Bar to 16Bar Carbon Steel Vertical Tank

Max. pressure :6bar-16bar
Working temperature: -20°C~99°C (Butyl)
-20°C~99°C (EPDM)
0°C~77°C (Nature rubber)
Get A Quote
Download
×
Get password
submit
PREV：TVT Series Carbon Steel Replaceable Membrane Expansion Vertical Pressure Tank NEXT：NVT Series Vertical Pressure Tank for Pump

Specification :
Replaceable membrane pressure tanks
Carbon steel

Pressure gauge upon request

Working temperature: -20°C~99°C (Butyl)
-20°C~99°C (EPDM)



Technical Data :

Model

Max. pressure

Diameter

Height

Precharge Pressure

Connector

Packing

bar

mm

mm

bar

CBM

WVT60L

6; 8; 10; 16

380

835

1.8-2.0

1"

0.1381

WVT80L

6; 8; 10; 16

450

785

1.8-2.0

1"

0.1600

WVT100L

6; 8; 10; 16

450

870

 1.8-2.0

1"

0.1782

WVT150L

10; 16

500

1135

 2.5/4.0

1"

0.3023

WVT200L

10; 16

628

1080

 2.5/4.0

1.5"

0.4682

WVT300L

10; 16

628

1360

 2.5/4.0

1.5"

0.5831

WVT500L

10; 16

790

1465

 2.5/4.0

1.5"

0.9344
