Carbon Steel Pressure Tank

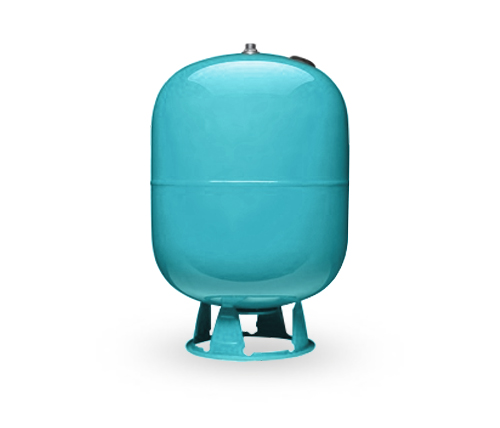

NVT Series Vertical Pressure Tank for Pump

Carbon steel flange

Working temperature: -10°C~99°C (Butyl)

-10°C~99°C (EPDM)

Get A Quote

Download

Get password

PREV：WVT Series 6Bar to 16Bar Carbon Steel Vertical Tank NEXT：WCF Series 6 Bar to 16 Bar 1 Inch Connector Horizontal Water Pressure Tank

Description
Components
Curves
Performance Data

Specification :
Replaceable membrane pressure tanks
Carbon steel flange
Working temperature: -20°C~99°C (Butyl)
-20°C~99°C (EPDM)
0°C~77°C (Nature rubber)

Technical Data :

Model	Max. pressure	Diameter	Height	Precharge Pressure	Connector	Packing
Model	bar	mm	mm	bar	Connector	CBM
NVT60L	6; 8; 10 ;16	380	728	1.8-2.0	1"	0.1126
NVT80L	6; 8; 10 ;16	450	680	1.8-2.0	1"	0.1481
NVT100L	6; 8; 10 ;16	450	765	1.8-2.0	1"	0.1650
