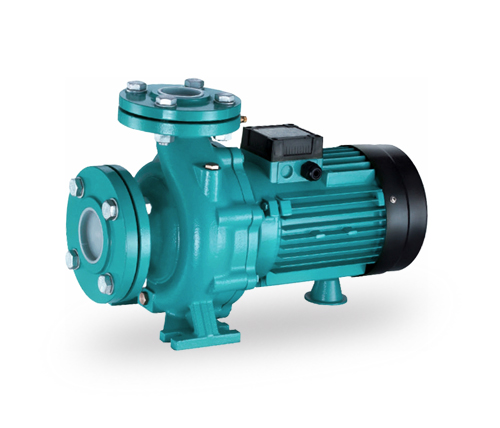

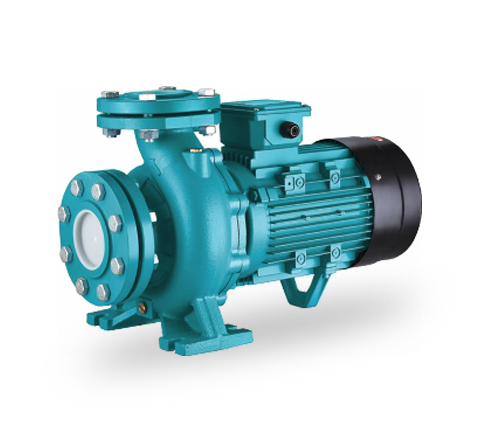

EPST Series Powful Advanced Easy Installation Centrifugal Monoblock Pump with Flange

Key Features :

1、It designs to apply for circulation and transfer of clean, chemically non-aggressive water and other liquids ;

Water supply and irrigation ; Water circulation in air conditioning systems as well as fire fighting system .
2、Feature in maximun flow that it is able delivery up to 1300l/min , and this pump's head reach up to 95m.
3、Easy Installation
4、Maximum operating pressure: 12 bar (PN12). Anti-clockwise rotation when facing pump's suction port
5、Mechanical seal in compliance with DIN 24960
6、Counter flange available on request
7、Lubricated by internal recirculating pumped liquid
8、Anti-clockwise rotation when facing pump's suction port
9、Closed construction, external ventilation
10、Overload protection
11、Single-impeller centrifugal pump featuring axial intake and radial discharge

12、Performance in compliance with CEl 2~3 (lEC34.1)
13、Insulation class: F
14、Protection class: lP54
15、Max.ambienttemperature: +40°C

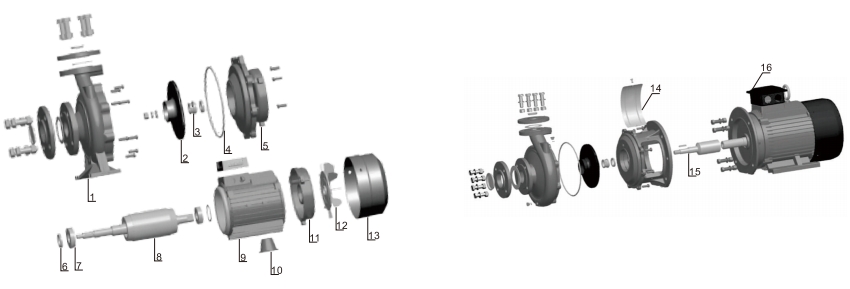

Components :

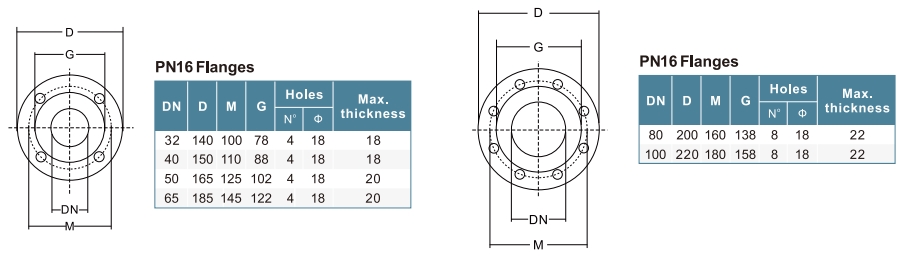

Flange Dimensions :

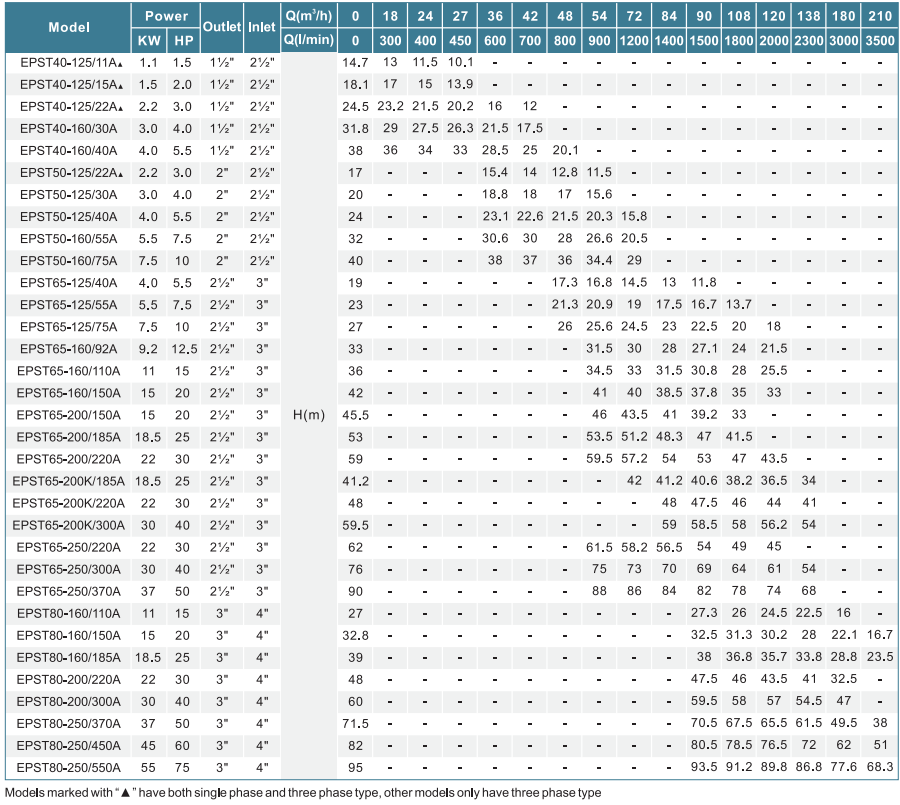

Technical Data :
