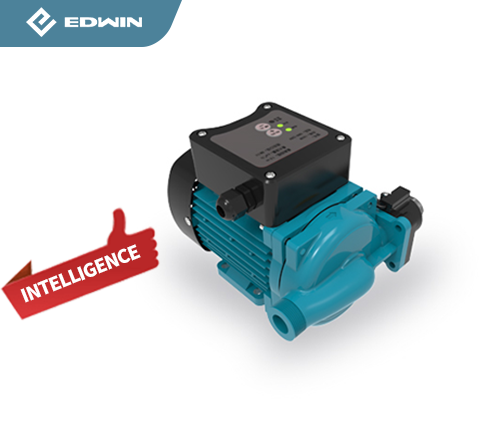

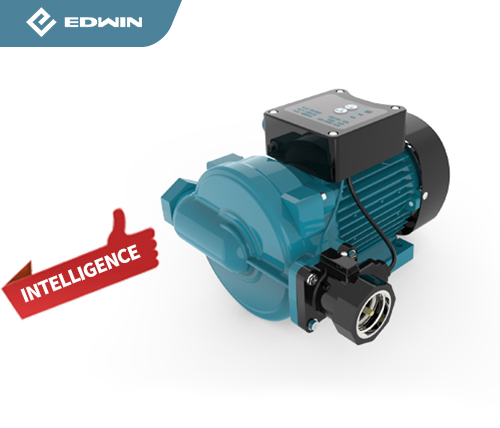

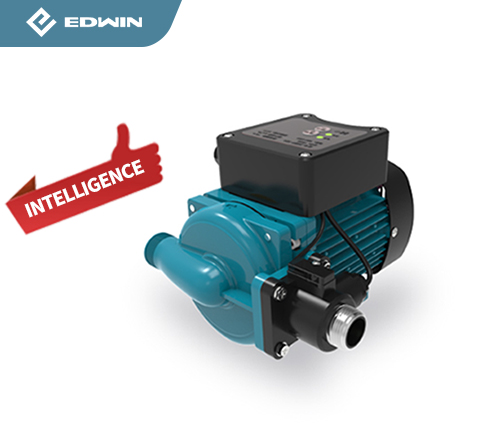

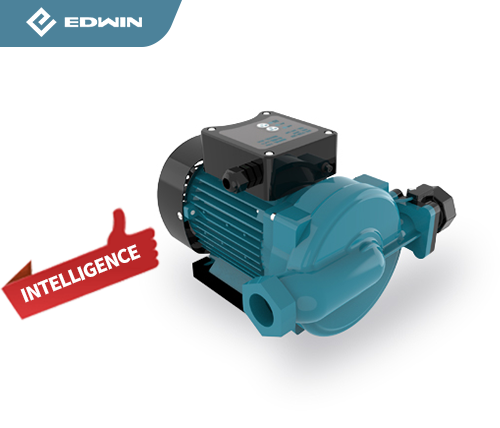

ITCPM Series Frequency Convertion Adaptive Seal Technology Booster Pump for Household

Description :

The ITCPM Series Frequency Conversion Adaptive Seal Technology Booster Pump for Household is a specialized water pump designed for residential use. It incorporates advanced frequency conversion technology and adaptive seal technology to provide efficient and reliable water pressure boosting.
The frequency conversion technology allows the pump to adjust its speed and power consumption based on the water demand. This ensures that the pump operates at the optimal level, saving energy and reducing operating costs. It also helps to maintain a consistent water pressure throughout the household, even during peak usage times.
The adaptive seal technology is designed to prevent leaks and ensure a tight seal between the pump and the plumbing system. This technology helps to minimize water wastage and ensures that the pump operates efficiently without any loss of pressure.
The ITCPM Series booster pump is specifically designed for household use, making it suitable for various applications such as showering, washing dishes, and watering the garden. It is compact in size and can be easily installed near the main water supply line.
Overall, the ITCPM Series Frequency Conversion Adaptive Seal Technology Booster Pump for Household is a reliable and efficient solution for boosting water pressure in residential buildings. It provides consistent water flow, energy efficiency, and ensures a tight seal to prevent leaks, making it an ideal choice for households looking to improve their water pressure.

Functions :

1. Adaptive functionality: Automated detection of pipeline pressure to trigger automatic adjustment of initial pressure.
2. Dual monitoring mechanism (pressure & flow switch): Endorses continuous pressure manipulation catering to pumps operating at a range of 0-100 meters head.
3. Water scarcity safeguard.
4. Automatic activation upon restoration of tap water supply.
5. Regular start and cease maintenance operations.
6. Thermal safety feature.
7. Optional time-setting functionality.
8. Resistance against electrophoresis, corrosion, and rust.
9. Easy plug and play operation.
10. Intelligent learning and memory capabilit.

Application ：

Agriculturally influenced water distribution system and landscaping irrigation HVAC, as well as enhancing the flow & pressurization capacity of both hot and cold water
Extended distance water transfer systems inclusive of auxiliary apparatuses.
Transportation and conveyance of potable water or fluid lacking corrosive elements or solid particles/fibers.

Working Condition ：

Operational specifications:
Maximum fluid temperature: +100°C
Maximal ambient temperature: +40°C
Isolation: Closed Class F
Environmental protection: IP44
Application frequency: S1
Input voltage configuration:
Single phase, 220V, 50/60Hz (Alternative input configurations are available upon request)

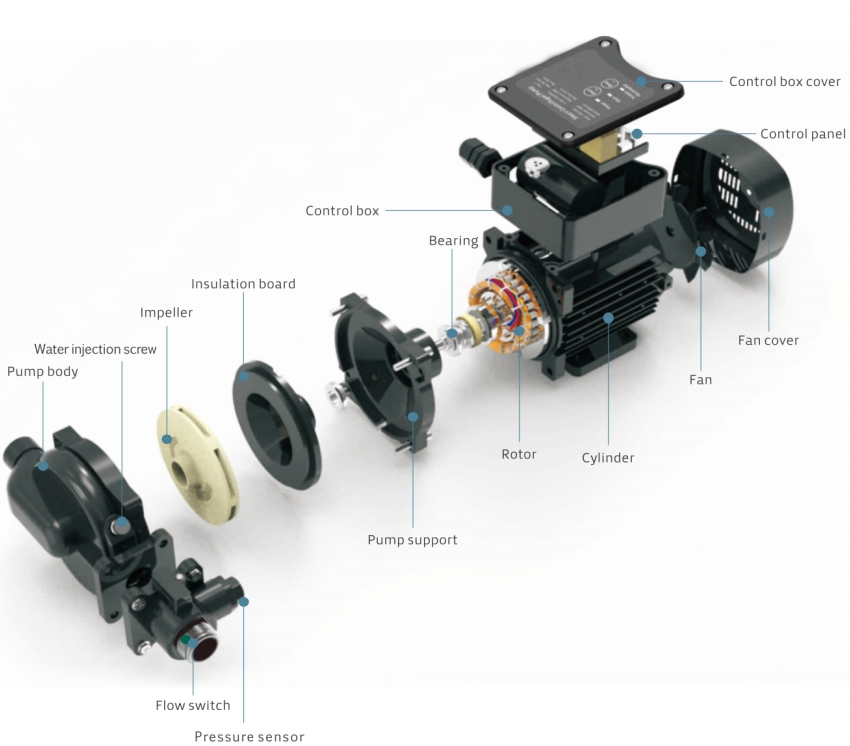

Key Features :

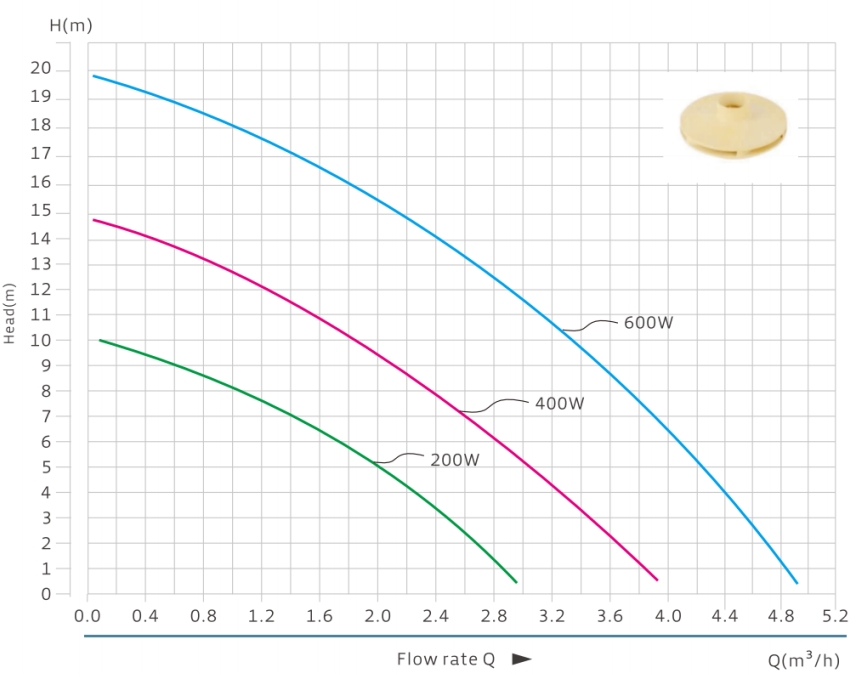

Performance Chart :

Technical Data ：
