KBS Series 380V 4KW to 37KW 15m Depth Submersible Drainage Pump for Mines

Description :

Submersible slurry pump with a 4-pole motor for an increased life time and greater convenience.

High chrome alloy impeller combined with agitator for pumping heavy slurry.

Slim design with a top discharge enabling installation in smaller casing.

For bentonite mixed water in fundation works or muddy water in civil engineer works.

Specification

• Capacity: up to 390m³/h
• Head: up to 42 meters
• Power: 4kW /5.5HP to 37 kW /50HP

Power supply : three phase 400V±10%_; 50Hz; 380V±10%; 60Hz

• Insulation class: F
• Protection class: IP68
• Cable length: 8m
• Water temperature:up to 40 degree
• Water depth: 15m



Application

• Civil engineering
• Mines,quarries,coal ore & slurries
• Sewage treatment plants
• General pumping purposes
• Pumping fluid: sludge, liquids-containing mud and bentonite

Special features on request

• Other voltages
• The length of cable is optional

Components and Materials :

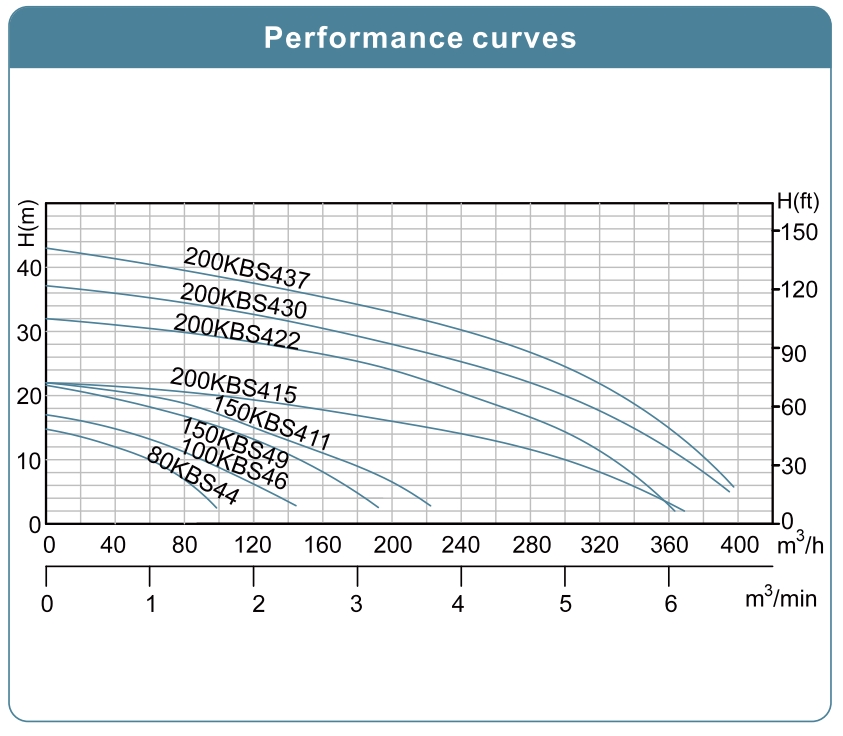

Performance Curves :

Technical Data :
