Specification
Insulation class : F
Protection class : IP68
Water temperature : up to 40°C
PH: 6 to 10
Density of liquid : 1.3g/cm3
Power supply : three phase 380V ±10%, 50Hz; three phase 380V ±10%, 60Hz
Motor protection : 7.5kW built in
Capacity : up to 200m3/h
Head : up to 52m
Maximum immersion depth : 20m
Cable length : 8m
Components :
|
Materials Table |
||
|
NO. |
Name |
Material |
|
01 |
Hose coupling |
Cast iron |
|
01a |
Hose coupling |
Cast iron |
|
03 |
Terminal box |
Cast iron |
|
05 |
Upper cover |
Cast iron |
|
06 |
Up-Bearing house |
Cast iron |
|
07 |
Bearing house |
Cast iron |
|
10 |
Seal Bracket |
Cast iron |
|
11 |
Motor body |
Cast iron |
|
13 |
Pump body |
Cast iron |
|
14 |
Impeller |
Ductile iron |
|
17 |
Coupling adapter |
Cast iron |
|
22 |
Seat assembly |
Cast iron |
|
22a |
Coupling seat |
Cast iron |
|
22b |
Upper guide support |
Cast iron |
|
27 |
Stator |
Cast iron |
|
28 |
Rotor |
Shaft : AISI304SS |
|
30 |
Flange |
Cast iron |
|
31a |
Bearing |
Ball bearing |
|
31b |
Bearing |
Ball bearing |
|
33 |
Motor protector |
|
|
34a |
Mechanical seal |
Sic-Sic/Carbon-Ceramic |
|
34b |
Mechanical seal |
Sic-Sic |
|
47 |
Cable |
|
|
S1/2 |
Overheat protector : on option |
|
|
S1/2 |
Oil water leakage probe : on option |
|

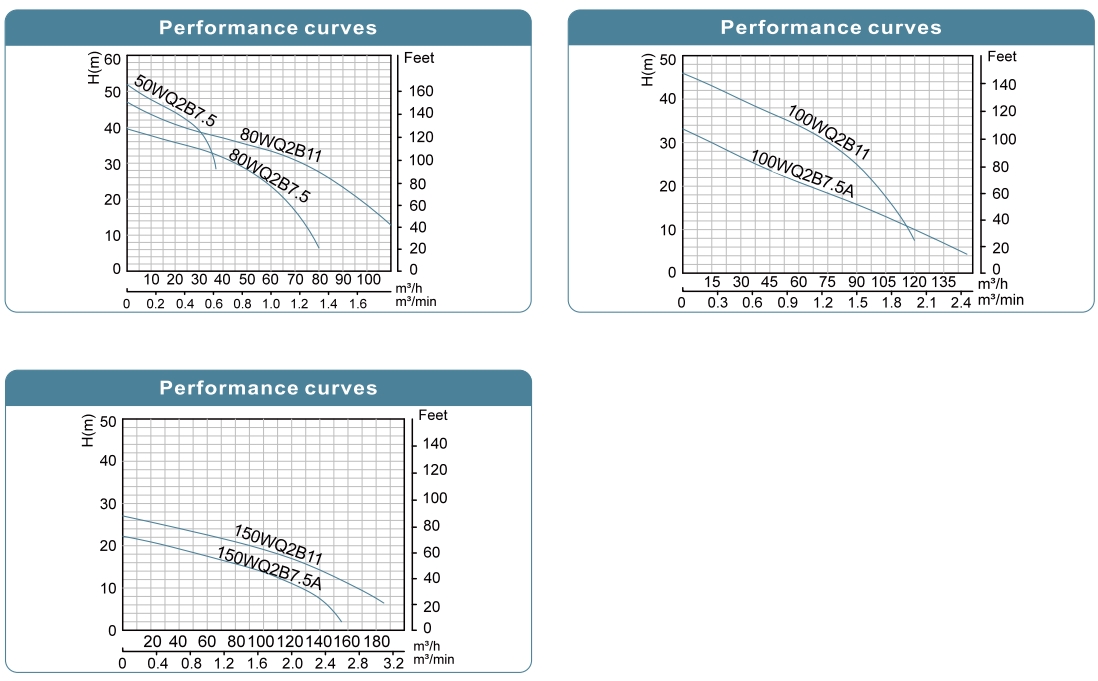

Performance Curves :
Technical Data :
|
Model (50/60Hz) |
Rated Current (380V) |
Motor Power |
Outlet |
Rated Capacity |
Rated Head |
Max. Capacity |
Max. Head |
Impeller Passage |
Cable |
||
|
A |
KW |
HP |
inch |
mm |
m3/h |
m |
m3/h |
m |
mm |
mm2 |
|
|
50WQ2B-7.5 |
15.7 |
7.5 |
10 |
2 |
50 |
20 |
45 |
37 |
52 |
25 |
4G4.0 |
|
80WQ2B-7.5 |
15.7 |
7.5 |
10 |
3 |
80 |
30 |
35 |
80 |
40 |
30 |
4G4.0 |
|
100WQ2B-7.5 |
15.7 |
7.5 |
10 |
4 |
100 |
65 |
22/20 |
145 |
35/33 |
35 |
4G4.0 |
|
150WQ2B-7.5 |
15.7 |
7.5 |
10 |
6 |
150 |
100 |
14 |
168/155 |
23 |
40 |
4G4.0 |
|
80WQ2B-7.5A |
15.7 |
7.5 |
10 |
3 |
80 |
45 |
30 |
80 |
40 |
30 |
4G2.5 |
|
100WQ2B-7.5A |
15.7 |
7.5 |
10 |
4 |
100 |
65 |
22/20 |
125 |
35/33 |
35 |
4G2.5 |
|
150WQ2B-7.5A |
15.7 |
7.5 |
10 |
6 |
150 |
100 |
14 |
168/155 |
23 |
40 |
4G2.5 |
|
80WQ2B-11 |
22 |
11 |
15 |
3 |
80 |
45 |
37 |
110 |
48 |
35 |
4G4.0 |
|
100WQ2B-11 |
22 |
11 |
15 |
4 |
100 |
65 |
35/33 |
125 |
48/46 |
35 |
4G4.0 |
|
150WQ2B-11 |
22 |
11 |
15 |
6 |
150 |
100 |
20/19 |
200/185 |
29/27 |
50 |
4G4.0 |
