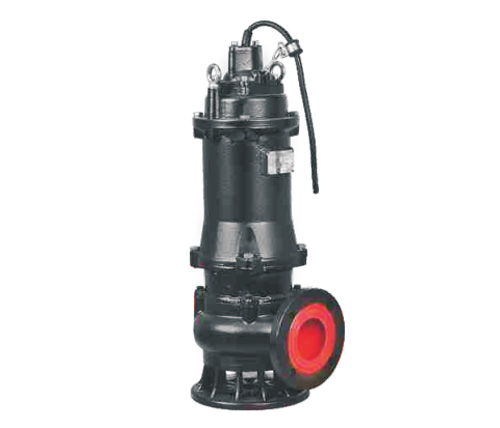

Specification
Insulation class : F
Protection class : IP68
Water temperature : up to 40℃
PH : 6 to 10
Density of liquid : 1.3g/cm3
Power supply : three phase 380V ±10%, 50Hz
three phase 380V ±10%, 60Hz
Capacity : up to 200m3/h
Head : up to 52m
Maximum immersion depth : 20m
Cable length : 8m
Components :
|
Materials Table |
||
|
NO. |
Name |
Material |
|
01 |
Hose coupling |
Cast iron |
|
01a |
Hose coupling |
Cast iron |
|
03 |
Terminal box |
Cast iron |
|
05 |
Upper cover |
Cast iron |
|
06 |
Up-Bearing house |
Cast iron |
|
07 |
Bearing house |
Cast iron |
|
10 |
Seal Bracket |
Cast iron |
|
11 |
Motor body |
Cast iron |
|
13 |
Pump body |
Cast iron |
|
14 |
Impeller |
Ductile iron |
|
17 |
Coupling adapter |
Cast iron |
|
22 |
Seat assembly |
Cast iron |
|
22a |
Coupling seat |
Cast iron |
|
22b |
Upper guide support |
Cast iron |
|
27 |
Stator |
Cast iron |
|
28 |
Rotor |
Shaft : AISI304SS |
|
30 |
Flange |
Cast iron |
|
31a |
Bearing |
Ball bearing |
|
31b |
Bearing |
Ball bearing |
|
33 |
Motor protector |
|
|
34a |
Mechanical seal |
Sic-Sic/Carbon-Ceramic |
|
34b |
Mechanical seal |
Sic-Sic |
|
47 |
Cable |
|
|
S1/2 |
Overheat protector : on option |
|
|
S1/2 |
Oil water leakage probe : on option |
|

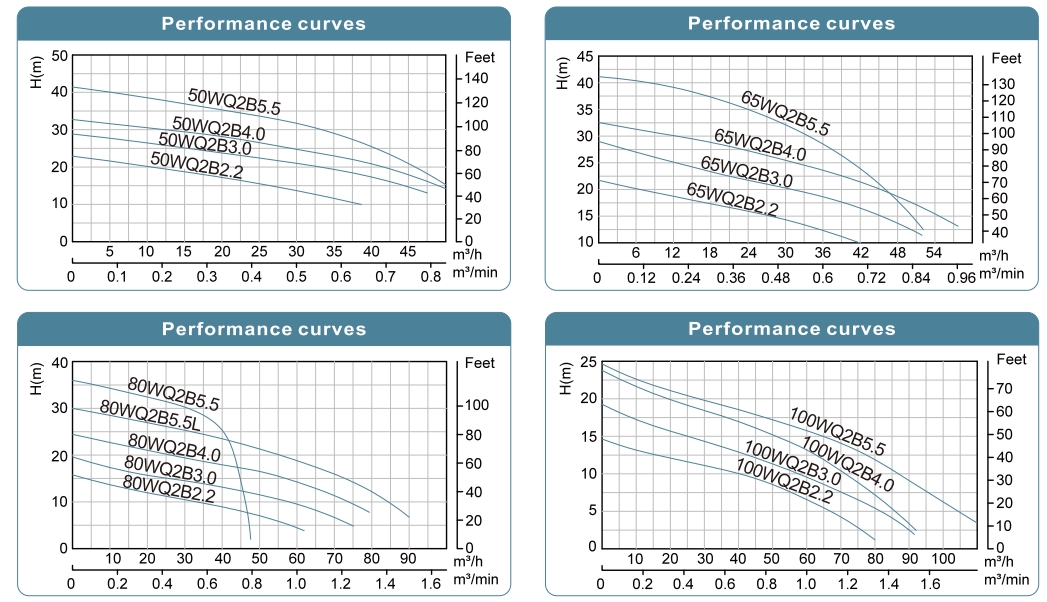

Performance Curves :
Technical Data :
|
Model (50/60Hz) |
Rated Current (380V) |
Motor Power |
Outlet |
Rated Capacity |
Rated Head |
Max. Capacity |
Max. Head |
Impeller Passage |
Cable |
||
|
A |
KW |
HP |
inlet |
mm |
m3/h |
m |
m3/h |
m |
mm |
mm2 |
|
|
50WQ2B-2.2 |
5 |
2.2 |
3 |
2 |
50 |
15 |
19 |
40 |
22 |
20 |
4G1.0 |
|
65WQ2B-2.2 |
5 |
2.2 |
3 |
2.5 |
65 |
25 |
16 |
42 |
22 |
20 |
4G1.0 |
|
80WQ2B-2.2 |
5 |
2.2 |
3 |
3 |
80 |
40 |
9 |
64 |
16 |
30 |
4G1.0 |
|
50WQ2B-3.0 |
6.5 |
3 |
4 |
2 |
50 |
15 |
25 |
46 |
28 |
20 |
4G1.5 |
|
65WQ2B-3.0 |
6.5 |
3 |
4 |
2.5 |
65 |
25 |
22 |
52 |
26/29 |
20 |
4G1.5 |
|
80WQ2B-3.0 |
6.5 |
3 |
4 |
3 |
80 |
40 |
13 |
75 |
20 |
30 |
4G1.5 |
|
100WQ2B-3.0 |
6.5 |
3 |
4 |
4 |
100 |
60 |
9 |
92 |
19 |
30 |
4G1.5 |
|
50WQ2B-4.0 |
8.9 |
4 |
5.5 |
2 |
50 |
15 |
30 |
49 |
33 |
20 |
4G1.5 |
|
65WQ2B-4.0 |
8.9 |
4 |
5.5 |
2.5 |
65 |
25 |
28/27 |
58 |
33 |
20 |
4G1.5 |
|
80WQ2B-4.0 |
8.9 |
4 |
5.5 |
3 |
80 |
40 |
18 |
81 |
24 |
30 |
4G1.5 |
|
100WQ2B-4.0 |
8.9 |
4 |
5.5 |
4 |
100 |
60 |
13 |
93 |
24 |
30 |
4G1.5 |
|
50WQ2B-5.5 |
11.7 |
5.5 |
7.5 |
2 |
50 |
15 |
40/38 |
52 |
42 |
20 |
4G2.5 |
|
65WQ2B-5.5 |
11.7 |
5.5 |
7.5 |
2.5 |
65 |
25 |
35 |
52 |
42 |
20 |
4G2.5 |
|
80WQ2B-5.5 |
11.7 |
5.5 |
7.5 |
3 |
80 |
30 |
30 |
47 |
36 |
25 |
4G2.5 |
|
80WQ2B-8.5L |
11.7 |
5.5 |
7.5 |
3 |
80 |
40 |
23 |
89 |
30 |
35 |
4G2.5 |
|
100WQ2B-5.5 |
11.7 |
5.5 |
7.5 |
4 |
100 |
65 |
15 |
110 |
25 |
30 |
4G2.5 |
