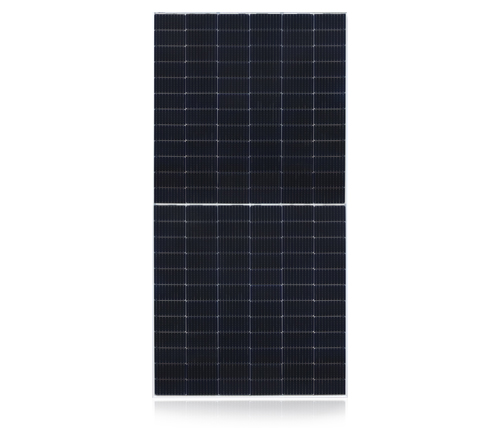

320W to 340W Poly-crystalline 72 Cell Cost Efficiency Solar Panel

Poly-crystalline
MBB  Solar Cell
72 cells
Cost Efficiency

Get A Quote
Download
×
Get password
submit
PREV：335W to 380W Mono-crystalline 60 Cell Half-cut Low Light Conditions Solar PanelNEXT：270W to 290W Poly-crystalline 60 Cell Solar Panel

Description:

      Harnessing the potential of 320W to 340W  Poly-crystalline 72 Cell Half-cut Cost Efficiency Solar Panel, the pump operates on a renewable energy source, making it an eco-friendly alternative to traditional pumps. With its ability to convert sunlight into electricity, this solar pump eliminates the need for grid power, reducing your carbon footprint and saving on energy costs. Embrace the power of the sun and experience a greener way of pumping water.

Key features:

1、5 Busbar Solar Cell : 5 busbar solar cell adopts new technology to improve the efficiency of modules , offers a better aesthetic appearance, making it perfect forrooftop installation.

1、High Power Output : Polycrystalline 72-cell module achieves a power output up to 340Wp.

2、Low-light Performance : Advanced glass and surface texturing allow for excellent performance in low-light environments.

3、Reliabale Warranty ：12 years' product warranty .Power warranty of 90% up to 12 years and 80% up to 25 years.

Components:

Front cover ( material / thickness )

low-iron tempered glass / 3.2mm

Backsheet (color)

TPT in white

Cell (quantity / material / dimensions)

72/polycrystalline silicon/156.75x156.75mm

Frame (material/color)

aluminum hollow-chamber frame on each side anodized aluminum alloy / silver

Junction box (protection degree)

≥ lP68

Cables & Plug connectors

2x900mm /4㎟&MC4compatible

Module Dimensions ( L / W / H )

1956x992x40mm

Solar Weight

20.9kg

Application class

Class A

Electrical protection class

Class ll

Fire safety class

Class C




Packing:

Container Size

Units / pallet (PSC)

Weight / Pallet

 (KG)

Pallet Measurment

(mm)

Units / Container

(PCS)

20GP

26

570

2010x1120x1120

260

40HQ

26

570

2010x1120x1120

649

33

720

2010x1120x1420

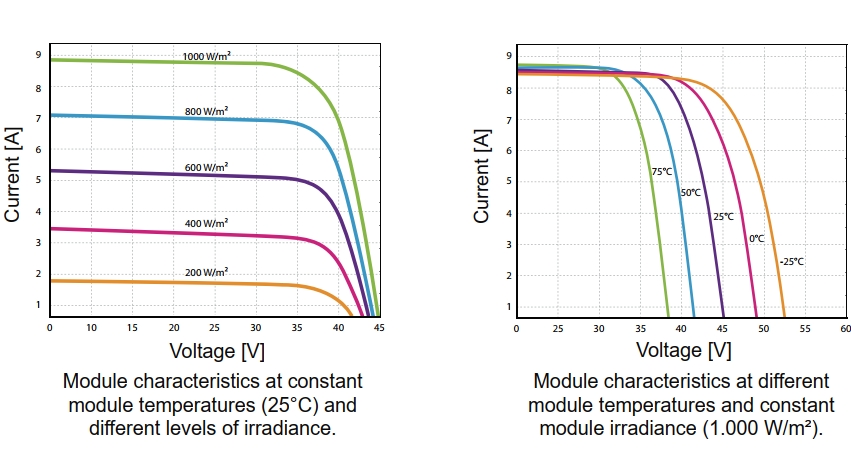

Current-voltage Curves :

Production of Solar Panel :

Electrical Performance Data:

Polycrystalline ,72-CELL SERIES

Panel type:ESM72P

320M

325M

330M

335M

340M

Maximum Power (Wp)

320W

325W

330W

335W

340W

Open circuit Voltage (Voc)

45.45V

45.60V

45.75V

46.1V

46.4V

Short circuit Current (lsc)

9.1A

9.2A

9.3A

9.38A

9.45A

Maximum Power Voltage (Vm)

37.65V

37.80V

37.95V

38.20V

38.50V

Maximum Power Current (lm)

8.5A

8.6A

8.7A

8.77A

8.84A

Panel efficiency

16.5%

16.8%

17%

17.2%

17.5%

Maximum Series Fuse

15A

Watts positive tolerance

0~+3%

Number of Diode

3

Standard Test Conditions

1000W/㎡,25°C，AM1.5

Maximum System Voltage

1000V/DC

Temperature-Coefficient Isc

+0.08558%/℃

Temperature-Coefficient Voc

-0.29506%/℃

Temperature-Coefficient Pmpp

-0.38001%/℃

Normal Operating Cell Temperature

-40℃….+85℃

Load Capacity for the cover of the panel (glass)

5400Pa ( IEC61215 ) ( snow )

Load Capacity for the front & back of the panel

2400Pa (IEC61215 ) ( wind )

Product Certificate

TUV(IEC 61215,IEC 61730),CE,

ROHS,PID Resisitant,INMETRO

Company Certificate

ISO9001,ISO14001,ISO18001
