1、It can be used to transfer clean water or other liquids similar towater in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment, etc.
2、It is easy to install and operate, and its compact design makes it ideal for small spaces.
3、The impeller is designed to withstand high pressure and provide efficient water flow, while the vortex pump ensures a smooth and consistent operation.
4、Built-in thermal protector for single phase motor.
5、Rust-free stainless steel inserts prevent impeller's block when starting after the pump is unused for a long time
6、Cast iron pump body and support under special antirust treatment.

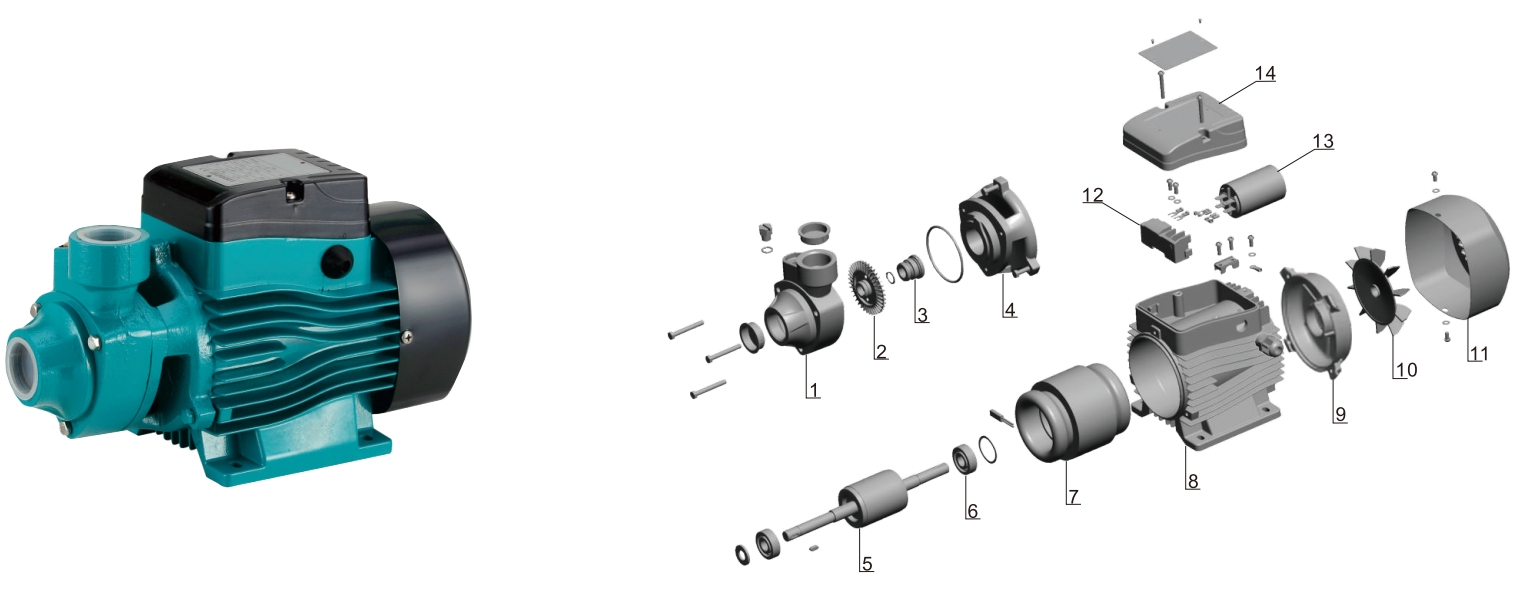

Materials Table |
||
NO. |
Part |
Material |
1 |
Pump Body |
HT200 |
2 |
Impeller |
Brass |
3 |
Mechanical Seal |
Carbon/Ceramic |
4 |
Support |
HT200 |
5 |
Shaft And Rotor |
|
6 |
Ball Bearing |
|
7 |
Stator |
|
8 |
Motor Case |
Aluminum |
9 |
Motor Cover |
Cast iron |
10 |
Fan |
PP |
11 |
Fan Cover |
|
12 |
Terminal Board |
PC |
13 |
Capacitor |
|
14 |
Terminal Cover |
Technical Data :
Model | Power | Inlet x Outlet | Max. Flow | Max. Head | Max. Suction | |
kW | HP | (L/min) | (m) | (m) | ||
ETP-60 | 0.37 | 0.5 | 1"x1" | 35 | 35 | 8 |
ETP-70 | 0.55 | 0.75 | 1"x1" | 50 | 55 | 8 |
ETP-80 | 0.75 | 1.0 | 1"x1" | 55 | 65 | 8 |
ETP-100 | 1.1 | 1.5 | 1.5"x1.5" | 90 | 60 | 8 |
ETP-150 | 1.5 | 2.0 | 1.5"x1.5" | 100 | 70 | 8 |
