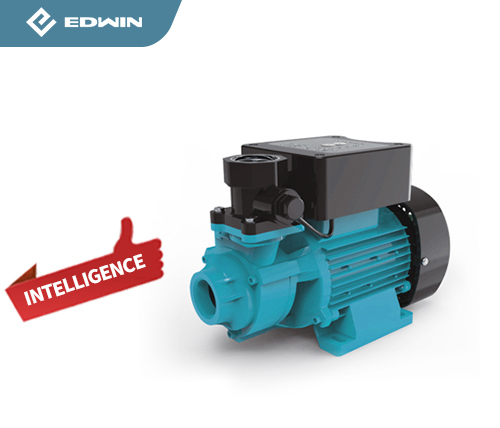

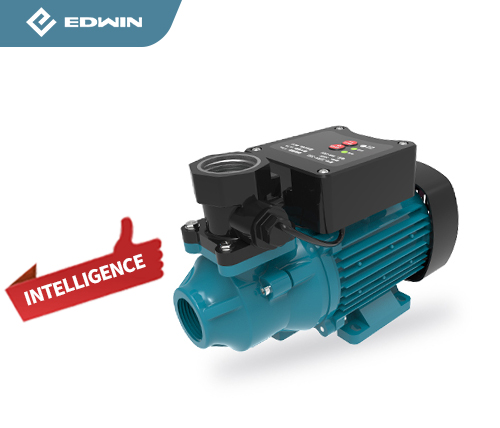

ITQB50-80 Series Portable Low Noise Brass Impeller Multi Protection Intelligent Vortex Peripheral Pump

Description :

The ITQB Series Portable Low Noise Copper Impeller Multi-Protection Intelligent Booster Pump is a type of water pump designed for boosting water pressure in residential or commercial water supply systems. Here's a breakdown of its key features :

1. Portable Design: The pump is designed to be portable, meaning it can be easily moved from one location to another as needed. This feature makes it versatile and suitable for various applications, such as temporary water supply setups or mobile irrigation systems.

2. Low Noise Operation: The pump is engineered to operate with minimal noise, ensuring quiet operation even in residential environments. This feature is beneficial for maintaining a peaceful atmosphere and reducing disturbances caused by pump operation.

3. Copper Impeller: The pump's impeller, the rotating component that generates water flow, is made of copper. Copper impellers are known for their durability, corrosion resistance, and efficient performance. They are well-suited for handling clean water and maintaining pump efficiency over time.

4. Multi-Protection System: The pump is equipped with a multi-protection system to safeguard against various potential issues or malfunctions. This system may include features such as overload protection, overheat protection, dry-run protection, and voltage fluctuations protection. These protections help prolong the pump's lifespan and ensure safe operation.

5. Intelligent Control: The pump incorporates intelligent control technology to optimize its performance and energy efficiency. This may involve features such as variable speed control, automatic pressure adjustment, and energy-saving modes. Intelligent control allows the pump to adapt to changing operating conditions and maintain consistent water pressure levels while minimizing energy consumption.



Key Function :

1, Adaptable function
Capable of identifying the pipe pressure automatically.Automatically adapts the initial pressure.
2, Dual control system (pressure&flow switch)Supports gradual pressure regulation for pumps with a head range of 0-100m)
3, Water scarcity prevention
4, Auto-activation upon re-availability of tap water
5, Cyclic start&stop protection
6, Thermal safeguard
7, Time-based function (optional)
8, Electrophoretic, corrosion&rust resistance
9, Plug-and-play functionality
10, Intelligent learning and memory function

Working conditions :

Max.liquid temperature : +100°C
Max.ambient temperature : +40°C
Insulation : Class F
Ingress protection : lP44
Duty cycle : S1
Input voltage :
Single phase, 220V,50/60Hz
(Other input voltages can be customized)

Application ：

Living water supply,
Automatic water sprinkler system,

Small air conditioner system and supporting equipment，

Transfer clean water or non-corrosive liquid without solid particles and fibers

Key Features :

Technical Data ：
