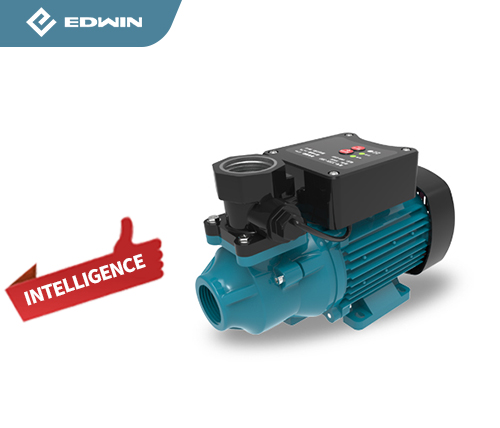

ITQB Series Water-shortage Protection Auto-start Peripheral Pump for Water Sprinkler System

Description :

The ITQB Series Water-shortage Protection Auto-start Peripheral Pump is specifically designed for water sprinkler systems. It is equipped with a water-shortage protection feature, which automatically starts the pump when the water level drops below a certain threshold. This ensures that the sprinkler system always has a sufficient water supply, even during periods of low water availability.
The pump is classified as a peripheral pump, which means it is suitable for applications where moderate pressure and flow rates are required. It is commonly used in residential and small-scale irrigation systems.
The auto-start feature eliminates the need for manual intervention, as the pump will start and stop automatically based on the water level. This ensures convenience and peace of mind for the user.
The ITQB Series pump is designed for durability and reliability. It is built with high-quality materials and features a robust construction to withstand continuous operation and harsh environmental conditions.
Overall, the ITQB Series Water-shortage Protection Auto-start Peripheral Pump is an ideal choice for water sprinkler systems. Its water-shortage protection feature, automatic operation, and reliable performance make it a practical and efficient solution for maintaining a constant water supply in irrigation applications.

Key Function :

1. Versatile Performance
Self-identification of pipeline pressure is possible. Initiation pressure adjustment occurs automatically.
2. DUAL REGULATION SYSTEM (PRESSURE & FLOW SWITCH)
Facilitates smooth pressure alteration for pumps within a 0 - 100m head capacity.
3. Prevention against Water Shortages
4. Automated Activation following the replenishment of tap water supply.
5. Cyclical Start/Stop Protection Mechanism
6. Thermal Safety Measures in place
7. Timing Function (Optional Feature)
8. Electrochemical Resistance to Corrosion and Rust
9. Plug-and-Play Capability
10. Intelligent Learning and Memory Functionality.

Working conditions :

Max.liquid temperature : +100°C
Max.ambient temperature : +40°C
Insulation : Class F
Ingress protection : lP44
Duty cycle : S1
input voltage :
Single phase, 220V,50/60Hz
(Other input voltages can be customized)

Key Features :

Technical Data ：
